Description and Technical Data:
1) Overview/Key Features

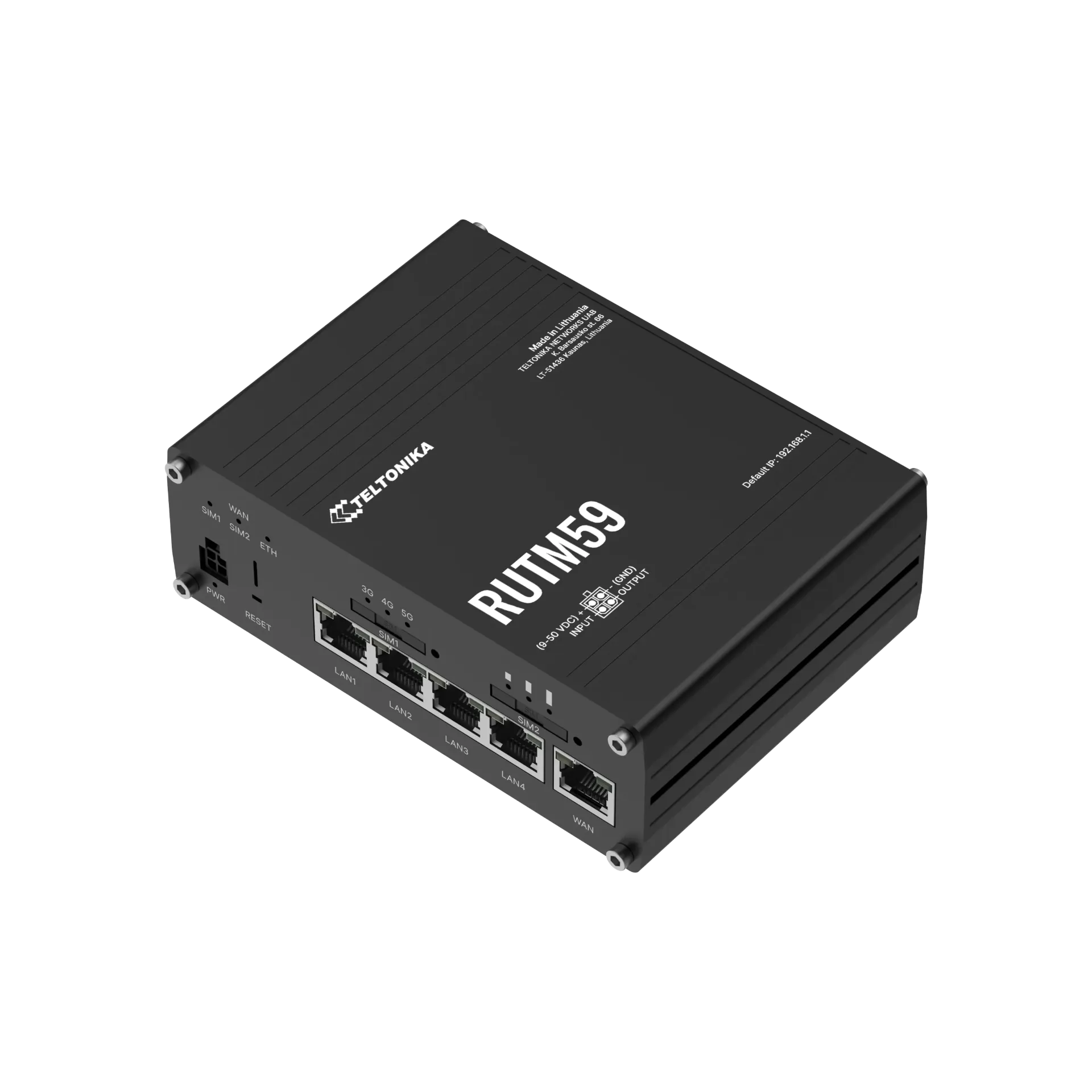

The RUTM59 is an industrial 5G cellular router designed for high-speed, reliable networking in professional and industrial applications. It supports both Standalone (SA) and Non-Standalone (NSA) 5G architectures, provides 4G LTE Cat 19 fallback, and includes dual-SIM redundancy, 5 x Gigabit Ethernet ports, GPS positioning, and advanced networking functions through the RutOS operating system.
- 5G Sub-6 GHz connectivity with download speeds up to 3.4 Gbps
- Support for both 5G SA and NSA architectures
- Backward compatibility with 4G LTE Cat 19
- 2 x Mini SIM slots with automatic failover
- 5 x Gigabit Ethernet RJ-45 ports
- Backup WAN and multiple connection-switching scenarios
- Integrated GNSS positioning support
- RutOS operating system based on OpenWrt
- Advanced VPN, firewall, routing, VLAN, and network-management functions
- Remote monitoring and management through RMS
- Wide 9 VDC to 50 VDC power-input range
- Industrial aluminum housing
- DIN rail, wall, and flat-surface mounting options using additional mounting kits
- Operating temperature range from -40°C to +75°C
The RUTM59 is suitable for industrial IoT, transportation, video surveillance, remote infrastructure, backup connectivity, and other applications requiring high-bandwidth cellular communication and network redundancy.
Minimum orders apply. NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Mobile technology | 5G NR Sub-6 GHz, 4G LTE Cat 19 |
| 5G architecture | Standalone and Non-Standalone |
| Maximum cellular download speed | Up to 3.4 Gbps |
| SIM | 2 x Mini SIM slots with automatic failover |
| Ethernet | 5 x Gigabit RJ-45 ports; 1 x WAN and 4 x LAN |
| WAN redundancy | Backup WAN and configurable connection-switching scenarios |
| GNSS | GPS, GLONASS, Galileo, BeiDou, and QZSS |
| CPU | Dual-core MIPS1004Kc processor, 880 MHz |
| RAM | 256 MB DDR3 |
| Storage | 16 MB serial NOR Flash and 256 MB serial NAND Flash |
| Power input | 9 VDC to 50 VDC |
| Power consumption | Less than 5 W idle; up to approximately 18 W maximum |
| Mobile antenna connectors | SMA connectors |
| GNSS antenna connector | SMA connector |
| Housing | Aluminum enclosure |
| Ingress protection | IP30 |
| Dimensions | Approximately 132 mm × 44.2 mm × 95.1 mm |
| Operating temperature | -40°C to +75°C |
| Operating humidity | 10% to 90%, non-condensing |
| Operating system | RutOS, based on OpenWrt |
| Remote management | RMS-compatible remote monitoring, configuration, and firmware management |
| Mounting | DIN rail, wall, or flat-surface mounting with additional kits |
3) Tech Support/Dokuments
Web available technical information usually covers first-start installation, SIM configuration, cellular connectivity, 5G SA and NSA operation, Ethernet and WAN settings, GNSS, RutOS configuration, routing, VPN, firewall, VLAN, network redundancy, RMS management, firmware updates, security, interfaces, certifications, troubleshooting, and configuration examples.
There are the following technical resources:
- Quick Start Guide
- Firmware Downloads
- Package Downloads
- Manual
- Interfaces documentation
- Certification & Approvals documentation
- Security documentation
- Nomenclature and classification-code information
- Product Change Notifications
- Marketing Material
- Software Development Kit documentation
- OSS information
- FAQ
Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
- DIN rail mounting kit
- Wall-mounting kit
- Flat-surface mounting kit
- External 5G/LTE antennas
- External GNSS antenna
- RMS remote management service
5) Downloads/Links
- Quick Start Guide (First Start)
- Firmware Downloads
- Package Downloads
- Manual
- Interfaces
- Certification & Approvals
- Security
- Nomenclature, Classification codes
- Product Change Notifications
- Marketing Material
- Software Development Kit (SDK)
- OSS
- FAQ
6) What is in the package
The package contains.
- 1 x RUTM59 cellular 5G router
- 1 x power adapter
- 5G/LTE antennas
- GNSS antenna
- 1 x Ethernet cable
- 1 x Quick Start Guide
