1) Overview/Key Features

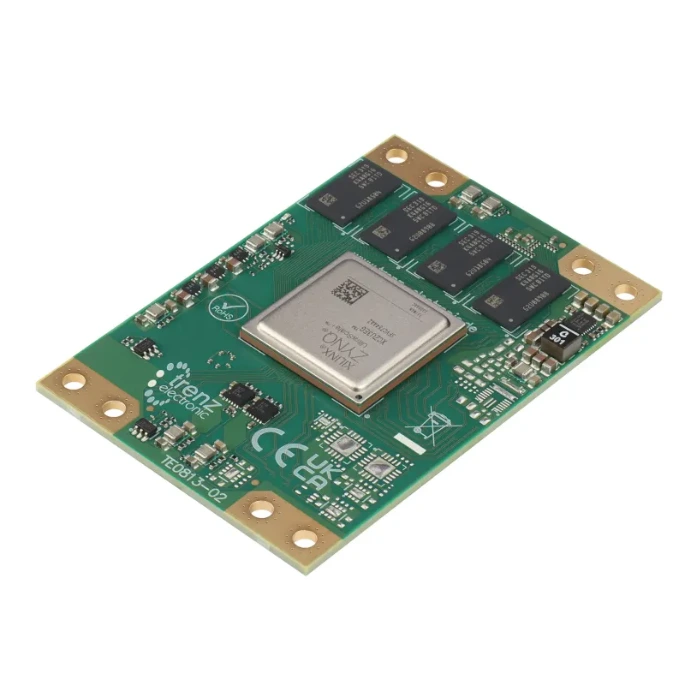

The TE0813-02-3AE81-A is a 5.2 × 7.6 cm MPSoC module built around an AMD Zynq™ UltraScale+™ ZU3CG-1E. It includes 4 GByte DDR4 SDRAM and 128 MByte QSPI boot flash, with configurable I/O and high-speed board-to-board connectors. The module supports designs using PCIe, SATA, DisplayPort, and USB 3.0.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| MPSoC | AMD Zynq™ UltraScale+™ XCZU3CG-1SFVC784E |
| Speed grade | -1 |
| Temperature grade | Extended |
| DDR4 SDRAM | 4 GByte, 64-bit data bus |
| QSPI boot flash | 128 MByte |
| EEPROM | EUI-48™/MAC address |
| Board-to-board connectors | 4 × Samtec ADM6 connectors |
| Programmable logic I/O | Up to 204 PL I/Os, depending on configuration |
| Processing-system I/O | Up to 65 PS MIOs |
| PS GTR transceivers | 4 |
| Dimensions | 76 × 52 mm |
| High-speed interfaces | PCIe, SATA, DisplayPort, USB 3.0 |
3) Tech Support/Dokuments
Web available technical information usually covers module features, supported device options, specifications, and design resources. There are the following resources: a technical reference manual and reference designs for the TE0813 platform. Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The TE0813-02 heat spreader and the TEBF0818-02A UltraITX+ baseboard are listed as compatible accessories.
5) Downloads/Links
- Download PDF version of this document
- TE0813 “StarterKit” Reference Design
- TE0813 “Test Board” Reference Design
6) What is in the package
1 x product
