Description and Technical Data:
1) Overview/Key Features

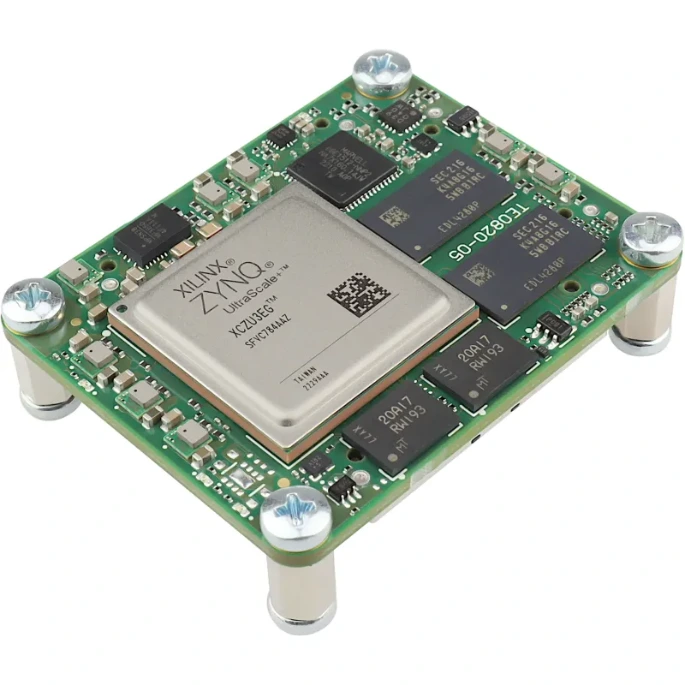

The TE0820-05-3AE81MA is a 4 × 5 cm MPSoC module featuring an AMD Zynq™ UltraScale+™ ZU3CG-1E and 2 GByte DDR4 SDRAM. It also includes 128 MByte QSPI boot flash, 8 GByte e.MMC, configurable I/O through high-speed board-to-board connectors, and on-board power supplies. Its high-speed interfaces include PCIe 2.1, SATA 3.1, DisplayPort, and USB 3.0. Component operating range is 0°C to +85°C; the module’s operating range depends on the system design and cooling solution.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| MPSoC | AMD Zynq™ UltraScale+™ XCZU3CG-1SFVC784E |
| Speed grade | -1 |
| Temperature range | Extended; components rated 0°C to +85°C |
| DDR4 SDRAM | 2 GByte, 32-bit data bus |
| QSPI boot flash | 128 MByte, dual-parallel mode |
| e.MMC storage | 8 GByte |
| Programmable logic I/O | 132 HP PL I/Os |
| Processing-system I/O | 14 PS MIOs |
| PS GTR transceivers | 4 |
| High-speed interfaces | PCIe 2.1, SATA 3.1, DisplayPort source, USB 3.0, serial GMII |
| On-board components | Lattice MachXO2 CPLD, programmable quad-PLL clock generator, Gigabit Ethernet PHY, USB 2.0 ULPI transceiver, MAC-address EEPROM, 4 LEDs |
| Board-to-board connectors | 2 × 100-pin and 1 × 60-pin Razor Beam connectors |
| Dimensions | 50 × 40 mm |
3) Tech Support/Dokuments
Web available technical information usually covers module features, specifications, operating conditions, and design resources. There are the following resources: technical reference documentation, product change information, and downloadable design files. Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
A TE0820-compatible heatspreader is listed as an add-on accessory.
5) Downloads/Links
6) What is in the package
The package contains.
- 1 × TE0820-05-3AE81MA MPSoC module
- 8 × screws
- 4 × bolts
