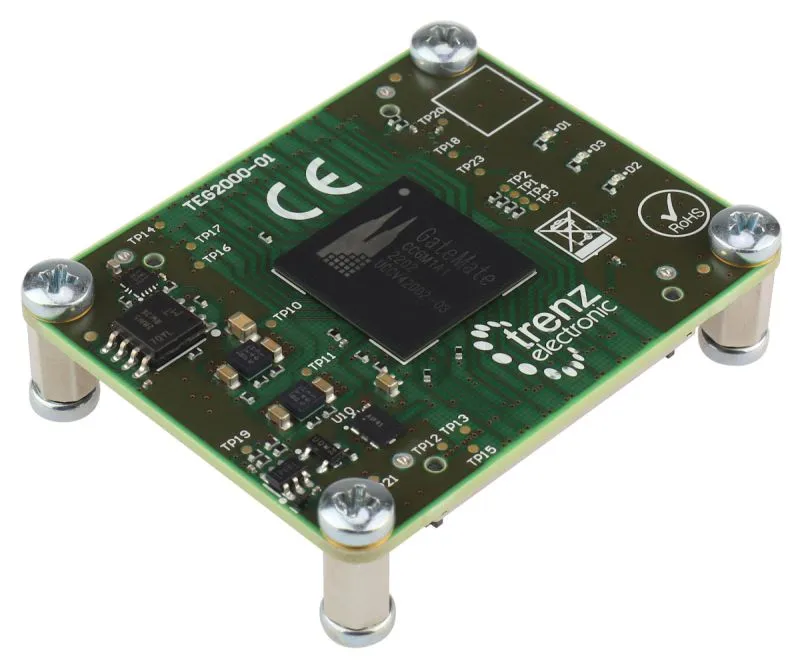

FPGA module with GateMate A1 from Cologne Chip, 16 MByte QSPI Flash, 4 x 5 cm (TEG2000-01-A1I-1A)

1) Overview/Key Features

The TEG2000-01-A1I-1A is a compact 4 × 5 cm FPGA module featuring the Cologne Chip GateMate CCGM1A1 FPGA in industrial temperature grade. The module combines 16 MB of Quad-SPI flash, configurable FPGA I/O, LVDS capability, a 5 Gb/s SerDes interface, on-board clocking, status indicators, and integrated power conversion.

The module is designed as a plug-on board for compatible carrier hardware. Its 2 × 100-pin Razor Beam board-to-board connectors provide access to the FPGA interfaces and support compact, high-density system integration.

Key features include:

• Cologne Chip GateMate CCGM1A1 FPGA
• Economy performance mode with 1.0 V core supply
• Industrial temperature range: -20°C to +85°C
• 16 MB / 128 Mbit Quad-SPI flash memory
• 25 MHz on-board clock oscillator
• 2 status LEDs and 1 user LED
• Configuration through on-board flash, USB, or JTAG
• 5 Gb/s SerDes interface
• 5 I/O banks with 18 I/Os or 9 LVDS pairs each
• 1 NB bank with 12 I/Os or 6 LVDS pairs
• 1 NA bank with 14 I/Os or 6 LVDS pairs
• 1 SB bank with 6 I/Os at 1.8 V and 8 level-shifted I/Os at 3.3 V
• 2 × 100-pin Samtec Razor Beam board-to-board connectors
• 3.3 V or 3.3 V and 5 V power-supply options
• High-efficiency on-board DC-DC converters
• Compact 4 × 5 cm form factor
• Open-source FPGA design-flow support

The manufacturer states that modules in the 4 × 5 cm form factor are mechanically and largely electrically compatible with one another. Other assembly options and high-volume configurations may be available on request.

NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.

2) Tech Specs

Electrical characteristics and usable I/O combinations depend on the selected carrier-board design and the GateMate device configuration.

3) Tech Support/Dokuments

Web available technical information usually covers the GateMate CCGM1A1 FPGA, industrial temperature range, Quad-SPI configuration memory, clock oscillator, LEDs, configuration methods, SerDes interface, I/O-bank organization, LVDS capability, board-to-board connectors, power-supply options, on-board DC-DC converters, mechanical dimensions, and open-source design-flow support.

There are the following additional technical resources: manufacturer information for Cologne Chip AG, information about Samtec Razor Beam connectors and compatibility, product documentation, design-support material, and a support forum. System integration should also consider carrier-board compatibility, I/O voltage domains, LVDS routing, SerDes signal integrity, configuration access, power sequencing, and thermal conditions.

Contact Mirifica Industrial for further detailed information for your project.

4) Related Product Suggestion

The manufacturer’s website mentions the following available add-on product categories:

• Carrier boards for 4 × 5 cm modules
• FPGA boards
• JTAG and power accessories
• XMOD FTDI JTAG adapters
• Pmod-compatible peripheral modules
• Cooling solutions
• Modules and heat spreaders
• Add-on boards
• Power supplies

5) Downloads/Links

• Homepage Cologne Chip AG
• Support Forum

6) What is in the package

The package contains.

• 1 x TEG2000-01-A1I-1A Trenz Electronic FPGA module with Cologne Chip GateMate CCGM1A1 FPGA
• 8 x screws
• 4 x bolts
