Description and Technical Data:
1) Overview/Key Features

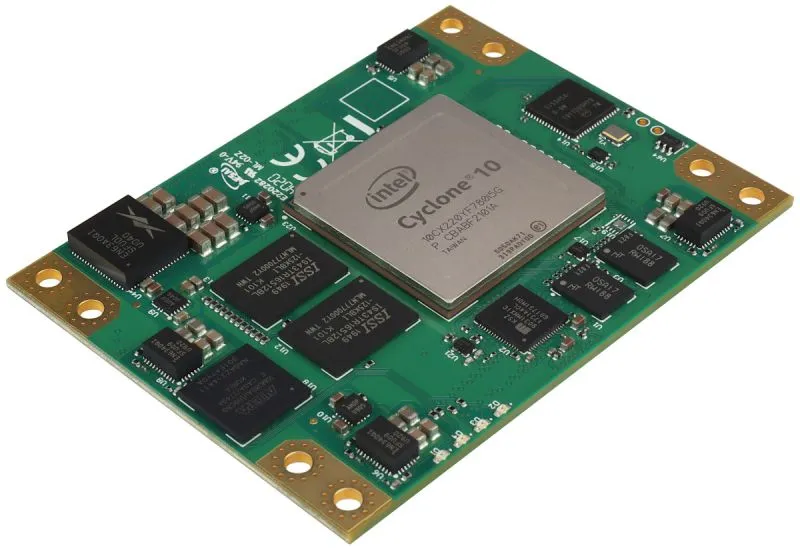

The TEI0006-04-ALE13A is an industrial-grade FPGA module based on the Altera® Cyclone® 10 GX 10CX105 device. It combines high-speed FPGA logic, integrated transceivers, DDR3L memory, boot flash, Gigabit Ethernet, clock-management circuitry, and flexible board-to-board I/O in a compact 6 × 8 cm plug-on module.
Key features include:
- Altera Cyclone 10 GX 10CX105YF780E5G FPGA
- FBGA-780 package
- Speed grade 5
- Operating temperature range of -40°C to +100°C for the FPGA device
- 128 MB DDR3L SDRAM
- 2 × 1-Gbit QSPI boot flash devices, 256 MB total
- Gigabit Ethernet
- 10-channel, any-frequency, any-output jitter attenuator and clock multiplier
- Altera MAX 10 system-controller CPLD
- 2-kbit EEPROM
- 4 user LEDs
- 226 single-ended I/O signals
- 94 differential pairs
- 46 LVDS pairs
- 12 × 12.5-Gbit/s transceivers
- 3 160-pin Samtec Razor Beam ST5 board-to-board connectors
- 5 V power input
- Compact 6 × 8 cm module format
The module is designed for use with a compatible carrier or baseboard and is suitable for industrial control, communications, high-speed data processing, FPGA acceleration, and embedded instrumentation. The module operating temperature depends on the customer design and cooling solution.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | FPGA module |
| Manufacturer article number | TEI0006-04-ALE13A |
| FPGA manufacturer | Altera |
| FPGA family | Cyclone 10 GX |
| FPGA device | 10CX105YF780E5G |
| FPGA package | FBGA-780 |
| FPGA speed grade | 5 |
| FPGA temperature rating | -40°C to +100°C |
| DDR3L SDRAM | 128 MB |
| QSPI boot flash | 2 × 1 Gbit; 256 MB total |
| Ethernet | 1 × Gigabit Ethernet |
| Clock management | 10-channel, any-frequency, any-output jitter attenuator and clock multiplier |
| System controller | Altera MAX 10 CPLD |
| EEPROM | 2 kbit |
| User indicators | 4 × user LEDs |
| Single-ended I/O | 226 |
| Differential pairs | 94 |
| LVDS pairs | 46 |
| High-speed transceivers | 12 |
| Transceiver data rate | Up to 12.5 Gbit/s per transceiver |
| Board-to-board connection | 3 × 160-pin Samtec Razor Beam ST5 connectors |
| Power supply | 5 V |
| Module dimensions | 6 × 8 cm |
| Compatible carrier | TEIB0006 |
Other assembly options for cost or performance optimization may be available on request.
3) Tech Support/Dokuments
Web available technical information usually covers the Cyclone 10 GX device, FPGA package and speed grade, memory configuration, boot-flash arrangement, Ethernet interface, system-controller CPLD, clock-management resources, user indicators, high-speed transceivers, I/O allocation, board-to-board connectors, power requirements, compatible carrier hardware, and module dimensions.
Development support includes product documentation, design-support files, reference designs, source files, technical reference information, system-controller firmware information, and product-change documentation. Integration should account for the selected carrier board, high-speed signal integrity, transceiver routing, power sequencing, thermal design, and the module’s 5 V supply requirement.
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
There are the following available add-on or companion products:
- TEIB0006 carrier board for the TEI0006 module family
- XMOD FTDI JTAG adapters
- JTAG and power accessories
- Cooling solutions
- Modules and heat spreaders
- FMC cards
- Pmod-compatible peripheral modules
5) Downloads/Links
- Trenz Electronic TEI0006 Wiki
- Online Documentation
- TEI0006 TRM - Technical Reference Manual
- TEI0006 Intel MAX 10 Firmware - Firmware Description
- TEI0006 Reference Designs - Reference Design description
- TEI0006 Product Change Notifications
6) What is in the package
The package contains.
- 1 x TEI0006-04-ALE13A Trenz Electronic FPGA module with Altera® Cyclone® 10 GX
