Description and Technical Data:
1) Overview/Key Features
The TE0745-03-93E31-AK is an industrial-grade System-on-Module based on the AMD Zynq™ 7045 SoC. It combines dual ARM Cortex-A9 processing, programmable logic, 1 GB DDR3L memory, 64 MB QSPI Flash, Ethernet, USB, high-speed GTX transceivers, and a large number of configurable I/Os in a compact 5.2 × 7.6 cm module.

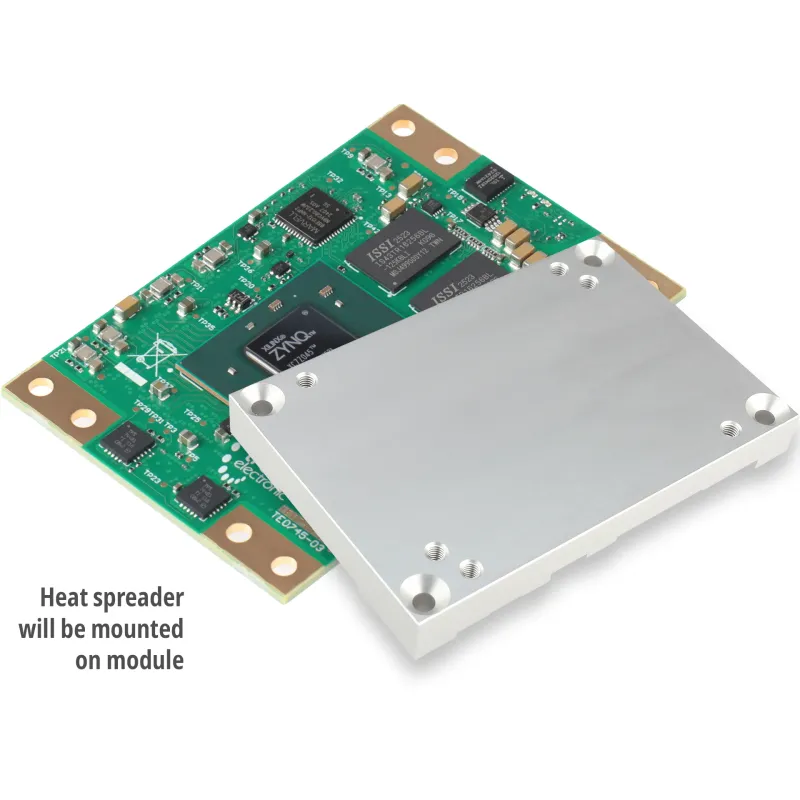

This variant is mechanically identical to the TE0745-03-93E31-A, but includes a mounted heat spreader for improved thermal coupling to a suitable customer cooling solution.
Key features include:
- AMD Zynq™ 7045 SoC, XC7Z045-3FFG676E
- Dual ARM Cortex-A9 MPCore processors
- Industrial temperature-rated components
- 1 GB, 32-bit DDR3L SDRAM
- 64 MB QSPI Flash memory
- Gigabit Ethernet PHY
- USB 2.0 OTG PHY
- 8 GTX high-speed transceivers
- 2 GTX reference-clock inputs
- 2 PLL outputs
- Optional reference-clock input for the PLL
- 250 FPGA I/Os
- 17 MIOs
- I²C interface
- MAC-address EEPROM
- Real-time clock
- 3 × 160-pin high-speed Samtec ST5 board-to-board connectors
- Evenly distributed supply pins for improved signal integrity
- Rugged construction for high shock and vibration environments
- Mounted heat spreader
- Compact 5.2 × 7.6 cm form factor
The module is suited to industrial control, embedded computing, communications, high-speed data processing, FPGA-based acceleration, imaging, and other applications requiring a compact Zynq-based processing and programmable-logic platform. The actual operating temperature depends on the customer design and cooling solution.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | System-on-Module |
| SoC device | AMD Zynq™ 7045 XC7Z045-3FFG676E |
| SoC family | Zynq |
| SoC architecture | 7 Series |
| SoC type | SoC |
| Processing cores | Dual ARM Cortex-A9 MPCore |
| Speed grade | -3 |
| Temperature grade | Industrial |
| DDR memory | 1 GB DDR3L SDRAM |
| DDR interface | 32-bit wide |
| QSPI Flash | 64 MB |
| Ethernet | 1 × Gigabit Ethernet PHY |
| USB | USB 2.0 OTG PHY |
| GTX transceivers | 8 |
| GTX reference clocks | 2 reference-clock inputs |
| PLL outputs | 2 |
| Optional clocking | Optional reference-clock input for PLL |
| FPGA I/O | 250 |
| PS MIO | 17 |
| Board-to-board connectors | 3 × 160-pin high-speed Samtec ST5 connectors |
| Interfaces | I²C, Ethernet, USB, QSPI |
| Identification | MAC-address EEPROM |
| Real-time clock | Included |
| Power distribution | Evenly distributed supply pins for improved signal integrity |
| Mechanical design | Rugged construction for high shock and vibration |
| Heat management | Mounted heat spreader |
| Form factor | 5.2 × 7.6 cm |
| Module type | Plug-on module |
| Component temperature range | -40 °C to +85 °C |
The module operating temperature range depends on the customer application, PCB design, enclosure, airflow, and cooling arrangement.
3) Tech Support/Dokuments
Web available technical information usually covers product features, electrical and mechanical characteristics, Zynq processing-system resources, programmable-logic resources, memory interfaces, transceiver connectivity, power distribution, reference designs, and software-development resources.
There are the following technical resources:
- TE0745 product documentation
- TE0745 Wiki documentation
- KK0745 carrier-board Wiki documentation
- TE0745 Test Board Reference Design documentation
- Hardware design-support files
- Schematics and assembly documentation
- Mechanical and dimensional information
- Vivado reference-design files
- Basic Linux example resources
- Test-board documentation
- Source-code and configuration files
- GTX clocking and transceiver resources
- Product-change information
- Support forum resources
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The manufacturer’s product information identifies the following related development hardware:
- TE0745 base board
- KK0745 carrier-board resources
- TE0745 Test Board
A compatible base or carrier board is required for practical development and for access to the module’s power, communication interfaces, programmable-logic I/Os, and high-speed transceiver connections.
5) Downloads/Links
- Trenz Electronic KK0745 Wiki
- Support Forum
- TE0745 Test Board Reference Design Documentation
- TE0745 product page
6) What is in the package
The package contains.
- 1 x TE0745-03-93E31-A System-on-Module with AMD Zynq™ 7045
- 1 x mounted heat spreader
