Description and Technical Data:
1) Overview/Key Features

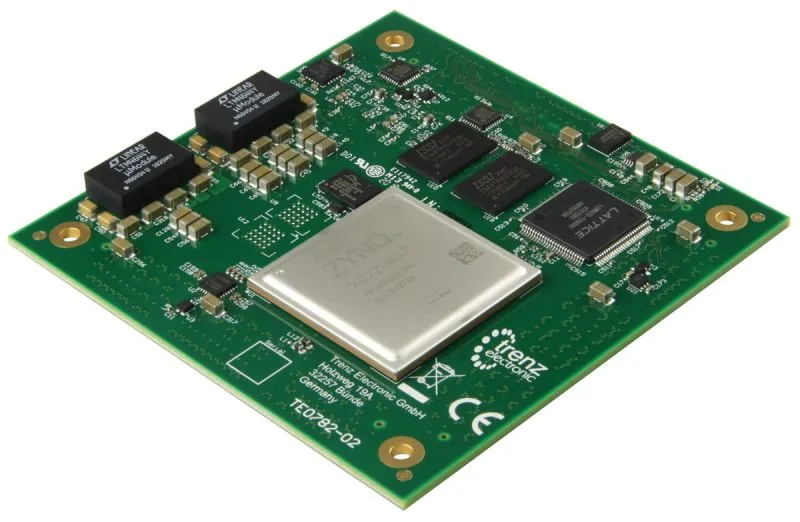

The TE0782-02-92I33MA is a high-performance industrial-grade FPGA module based on the AMD Zynq™ 7045-2I SoC. It integrates dual ARM Cortex-A9 processing, programmable logic, 1 GB DDR3 SDRAM, 8 GB e.MMC storage, 32 MB QSPI Flash, 16 GTX high-performance transceiver lanes, dual Gigabit Ethernet PHYs, and high-speed board-to-board connectivity in a compact 8.5 × 8.5 cm plug-on module.
The module is suitable for demanding embedded applications including industrial automation, high-speed data acquisition, image processing, communications, software-defined radio, motor control, and custom FPGA-based computing platforms.
Key features:
- AMD Zynq™ 7045 SoC, XC7Z045-2FFG900I
- Dual ARM Cortex-A9 MPCore processing system
- Industrial-grade -2I device
- Rugged construction for shock and high-vibration environments
- 1 GB DDR3 SDRAM
- 8 GB e.MMC memory, optionally configurable up to 64 GB
- 32 MB QSPI Flash for configuration and application data
- Optional 2 × 8 MB HyperRAM, expandable up to 2 × 32 MB
- 2 × high-speed USB 2.0 ULPI transceiver PHYs
- 2 × Gigabit Ethernet transceiver PHYs
- 2 × Ethernet MAC-address EEPROMs
- Real-time clock
- Si5338 PLL for GTX clock generation
- 16 GTX high-performance transceiver lanes
- GTX high-performance transceiver clock input
- 254 FPGA I/Os, including 125 LVDS pairs
- 3 × 160-pin high-speed board-to-board connectors
- Onboard high-efficiency DC-DC converters
- System-management and power-sequencing circuitry
- eFUSE bit-stream encryption support
- AES bit-stream encryption support
- Evenly distributed supply pins for improved signal integrity
- Compact 8.5 × 8.5 cm form factor
- Component temperature range of -40°C to +85°C; actual module operating temperature depends on the customer design and cooling solution
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | High-performance FPGA/SoC module |
| SoC device | AMD Zynq™ 7045 |
| Device part number | XC7Z045-2FFG900I |
| Processing system | Dual ARM Cortex-A9 MPCore |
| Speed grade | -2 |
| Device temperature grade | Industrial |
| FPGA/SoC architecture | 7 Series |
| FPGA/SoC family | Zynq |
| FPGA/SoC type | SoC |
| DDR3 SDRAM | 1 GB |
| e.MMC memory | 8 GB |
| Optional e.MMC capacity | Up to 64 GB |
| QSPI Flash | 32 MB |
| Optional HyperRAM | 2 × 8 MB, expandable up to 2 × 32 MB |
| USB | 2 × high-speed USB 2.0 ULPI transceiver PHY |
| Ethernet | 2 × Gigabit Ethernet transceiver PHY |
| Ethernet identification | 2 × Ethernet MAC-address EEPROM |
| Real-time clock | Included |
| GTX transceiver lanes | 16 |
| GTX clocking | Si5338 PLL and GTX transceiver clock input |
| FPGA I/Os | 254 |
| LVDS pairs | 125 |
| Board-to-board connectors | 3 × 160-pin high-speed strips |
| Power conversion | Onboard high-efficiency DC-DC converters |
| Power management | System management and power sequencing |
| Bit-stream security | eFUSE and AES bit-stream encryption support |
| Form factor | 8.5 × 8.5 cm |
| Mounting format | Plug-on module |
| Component temperature range | -40°C to +85°C |
| Module operating temperature | Dependent on customer design and cooling solution |
| Mechanical characteristics | Rugged design for shock and high-vibration environments |
3) Tech Support/Dokuments
Web available technical information usually covers the TE0782 module family, including the technical reference manual, schematics, assembly drawings, 3D mechanical data, PCB design files, pinout information, connector documentation, FPGA design examples, reference designs, Linux support, CPLD and initial-configuration files, and carrier-board integration guidance.
There are the following technical support resources:
- Technical Reference Manual
- Schematics
- Assembly diagrams
- 3D PDF and mechanical documentation
- PCB STEP models
- Connector information
- Pinout and board-to-board interface information
- Reference designs for supported Vivado versions
- Linux design examples
- Initial-configuration and firmware files
- CPLD programming files
- Carrier-board integration information
- Vivado Enterprise Edition design support
- Technical support forum
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- TEBT0782-01 — Carrier board for TE0782, TE0783, and TE0784 SoC modules. It provides access to most board-to-board I/O connections and supports basic I/O testing.
- TEBT0782-01A — Test board for TE0782, TE0783, and TE0784 SoC modules without USB connectivity.
5) Downloads/Links
- Trenz Electronic TE0782 Wiki
- TE0782 Zynq SoC Modules
- Overview Vivado Standard and Enterprise Edition
- Support Forum
6) What is in the package
The package contains.
- 1 x TE0782-02-92I33MA FPGA/SoC module with AMD Zynq™ 7045
- 8 x screws
- 4 x bolts
