Description and Technical Data:
1) Overview/Key Features

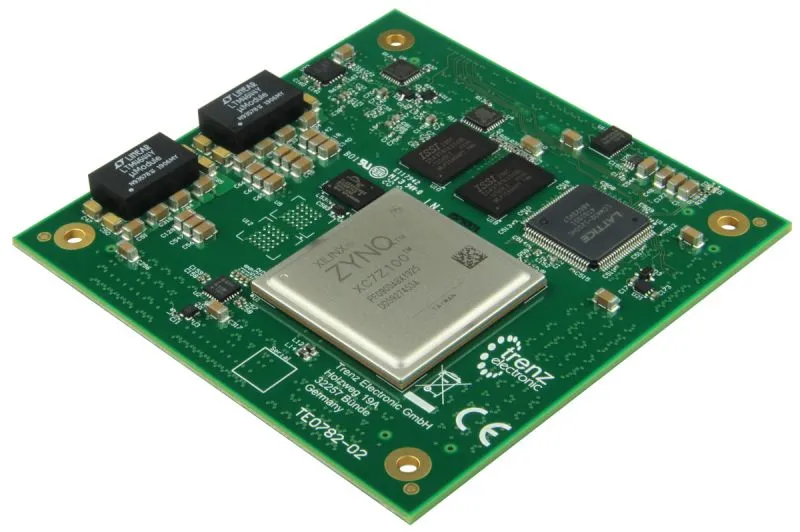

The TE0782-02-A2I33MA is an industrial-grade high-performance FPGA module based on the AMD Zynq™ 7100 SoC. It combines dual ARM Cortex-A9 processing, programmable logic, 1 GB DDR3L memory, 8 GB eMMC storage, high-speed GTX transceivers, Ethernet, USB, and extensive configurable I/O in an 8.5 × 8.5 cm plug-on module.
Key features include:
- AMD Zynq™ 7100 SoC, XC7Z100-2FFG900I
- 2 × ARM Cortex-A9 MPCore processors
- Industrial temperature-grade components
- 1 GB DDR3 SDRAM
- 32 MB QSPI Flash memory
- 8 GB eMMC memory
- Optional eMMC configurations up to 64 GB
- Optional HyperRAM support
- 2 × high-speed USB 2.0 ULPI transceiver PHYs
- 2 × Gigabit Ethernet transceiver PHYs
- 2 × Ethernet MAC-address EEPROMs
- Real-time clock
- 16 GTX high-performance transceiver lanes
- GTX high-performance transceiver clock input
- 254 FPGA I/Os available through board-to-board connectors
- Up to 125 LVDS pairs
- 3 × 160-pin high-speed board-to-board strips
- Si5338 PLL for GTX clocking
- On-board high-efficiency DC-DC converters
- System management and power sequencing
- eFUSE bit-stream encryption
- AES bit-stream encryption
- Rugged design suitable for shock and high-vibration environments
- 8.5 × 8.5 cm module form factor
- All parts rated for at least -40 °C to +85 °C
The module operating temperature depends on the customer application, PCB design, enclosure, airflow, and cooling solution.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | High-performance FPGA/SoC module |
| SoC device | AMD Zynq™ 7100 XC7Z100-2FFG900I |
| SoC family | Zynq |
| FPGA/SoC architecture | 7 Series |
| FPGA/SoC type | SoC |
| Processing cores | 2 × ARM Cortex-A9 MPCore |
| Speed grade | -2 |
| Temperature grade | Industrial |
| DDR memory | 1 GB DDR3 SDRAM |
| QSPI Flash | 32 MB |
| eMMC memory | 8 GB |
| Optional eMMC capacity | Up to 64 GB |
| Optional HyperRAM | 2 × 8 MB supported; up to 2 × 32 MB maximum |
| USB | 2 × high-speed USB 2.0 ULPI transceiver PHYs |
| Ethernet | 2 × Gigabit Ethernet transceiver PHYs |
| Ethernet identification | 2 × Ethernet MAC-address EEPROMs |
| Real-time clock | Included |
| GTX transceivers | 16 high-performance transceiver lanes |
| GTX clocking | Dedicated GTX high-performance transceiver clock input |
| FPGA I/O | 254 I/Os |
| LVDS capability | Up to 125 LVDS pairs |
| Board-to-board interface | 3 × 160-pin high-speed strips |
| Clock generator | Si5338 PLL for GTX clocking |
| Power conversion | On-board high-efficiency DC-DC converters |
| Security | eFUSE and AES bit-stream encryption |
| Input/output arrangement | Configurable I/O through rugged high-speed stacking strips |
| Form factor | 8.5 × 8.5 cm |
| Module type | Plug-on module |
| Environmental design | Rugged design for shock and high vibration |
| Component temperature range | -40 °C to +85 °C |
The module operating temperature range depends on the customer design and cooling solution.
3) Tech Support/Dokuments
Web available technical information usually covers product features, electrical and mechanical characteristics, SoC resources, memory interfaces, high-speed transceivers, board-to-board connectivity, power architecture, reference designs, software examples, and configuration files.
There are the following technical resources:
- TE0782 product information
- TE0782 Wiki documentation
- TE0782 Basic Zynq System documentation
- TE0782 Test Board resources
- Hardware design files
- Schematics and assembly information
- Mechanical and dimensional documentation
- Vivado reference-design files
- Zynq PS and PL example designs
- Linux and PetaLinux-related resources
- USB and Ethernet example implementations
- RTC and system-control documentation
- QSPI boot and configuration resources
- Product-change information
- Support forum resources
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The product documentation references the following optional configurations and related resources:
- Optional eMMC memory configurations up to 64 GB
- Optional 2 × 8 MB Cypress HyperRAM configuration
- HyperRAM configurations up to 2 × 32 MB
- TE0782 Test Board resources
- TE0782 Basic Zynq System reference design
The optional memory configurations should be specified and confirmed before ordering because they affect the module configuration and available memory resources.
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x TE0782-02-A2I33MA FPGA/SoC module with AMD Zynq™ 7100
- 8 x screws
- 4 x bolts
