Description and Technical Data:
1) Overview/Key Features
The TE0807-04-7DE81-AK is a compact MPSoC module based on the AMD Zynq™ UltraScale+™ ZU7EV-1E. It combines a heterogeneous processing system with programmable logic, integrated graphics and video codec acceleration, DDR4 memory, QSPI boot Flash, high-speed serial transceivers, rugged board-to-board connectivity, and onboard power-management circuitry.
The module is designed for demanding embedded applications such as industrial control, machine vision, video processing, high-speed data acquisition, communications, robotics, and custom FPGA-based computing platforms. This version includes a pre-assembled heat spreader.
Key features:
- AMD Zynq™ UltraScale+™ XCZU7EV-1FBVB900E MPSoC
- -1 speed grade
- Extended-temperature device
- Integrated graphics processing unit
- Integrated video codec unit
- 4 GB DDR4 SDRAM
- 2 × 64 MB QSPI boot Flash
- 2 Kbit serial EEPROM for MAC-address storage and EUI-48 node identity
- 20 high-speed serial transceivers
- 4 × PS GTR transceivers
- 16 × PL GTH transceivers
- Up to 204 programmable-logic I/Os
- 156 HP I/Os
- 48 HD I/Os
- Up to 65 PS MIOs
- I²C and JTAG interfaces
- 4 × 160-pin rugged high-speed board-to-board connectors
- Switch-mode power supplies for the onboard voltage rails
- Power supplied through the board-to-board connector
- Compact 5.2 × 7.6 cm form factor

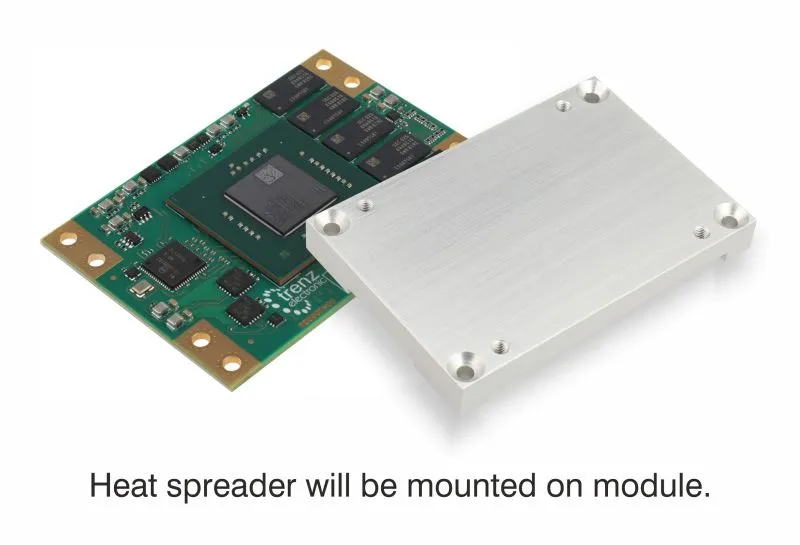

- Pre-assembled heat spreader
- Component temperature range of 0°C to +85°C; actual module operating temperature depends on the customer design and cooling solution
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | MPSoC module with pre-assembled heat spreader |
| MPSoC device | AMD Zynq™ UltraScale+™ XCZU7EV-1FBVB900E |
| Zynq device | ZU7EV-1E |
| Speed grade | -1 |
| Device package | FBVB900 |
| FPGA/SoC architecture | UltraScale+ |
| FPGA/SoC family | Zynq |
| FPGA/SoC type | MPSoC |
| Processing system | ARM-based Zynq UltraScale+ processing system |
| Graphics processing | Integrated GPU |
| Video processing | Integrated video codec unit |
| DDR4 SDRAM | 4 GB |
| QSPI boot Flash | 2 × 64 MB |
| Total QSPI boot Flash capacity | 128 MB |
| MAC-address memory | 2 Kbit serial EEPROM with EUI-48 node identity |
| High-speed serial transceivers | 20 |
| PS GTR transceivers | 4 |
| PL GTH transceivers | 16 |
| Programmable-logic I/Os | Up to 204 |
| HP I/Os | 156 |
| HD I/Os | 48 |
| PS MIOs | Up to 65 |
| Interfaces | I²C and JTAG |
| Board-to-board connectors | 4 × 160-pin ST5 connectors |
| Power input | Via board-to-board connector |
| Power management | Onboard switch-mode power supplies |
| Form factor | 5.2 × 7.6 cm |
| Cooling | Pre-assembled heat spreader |
| Component temperature range | 0°C to +85°C |
| Module operating temperature | Dependent on customer design and cooling solution |
3) Tech Support/Dokuments
Web available technical information usually covers the TE0807 module family, including the technical reference manual, schematics, pinout documentation, connector information, mechanical data, reference designs, design-support files, configuration files, software guidance, and carrier-board integration information.
There are the following technical support resources:
- Technical Reference Manual
- Hardware design files
- Schematics and assembly documentation
- Pinout and board-to-board connector information
- Mechanical and 3D design data
- Reference designs with source files
- FPGA design-support files
- Configuration and firmware files
- Linux and embedded-software guidance
- Vivado Standard Edition design support
- Carrier-board integration information
- Product Change Notification documentation
- Technical support forum
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- TEBF0808-05 — UltraITX+ baseboard developed for TE0803, TE0807, and TE0808 UltraSOM+ MPSoC modules. It provides a development and integration platform for the TE0807 module family.
5) Downloads/Links
- Trenz Electronic TE0807 Wiki
- TE0807 Zynq UltraScale+ MPSoC Modules
- Overview Vivado Standard and Enterprise Edition
- Support Forum
6) What is in the package
The package contains.
- 1 x TE0807-04-7DE81-A MPSoC module with AMD Zynq™ UltraScale+™ ZU7EV
- 1 x mounted heat spreader for TE0807, article no. KK0807-04
