Description and Technical Data:
1) Overview/Key Features

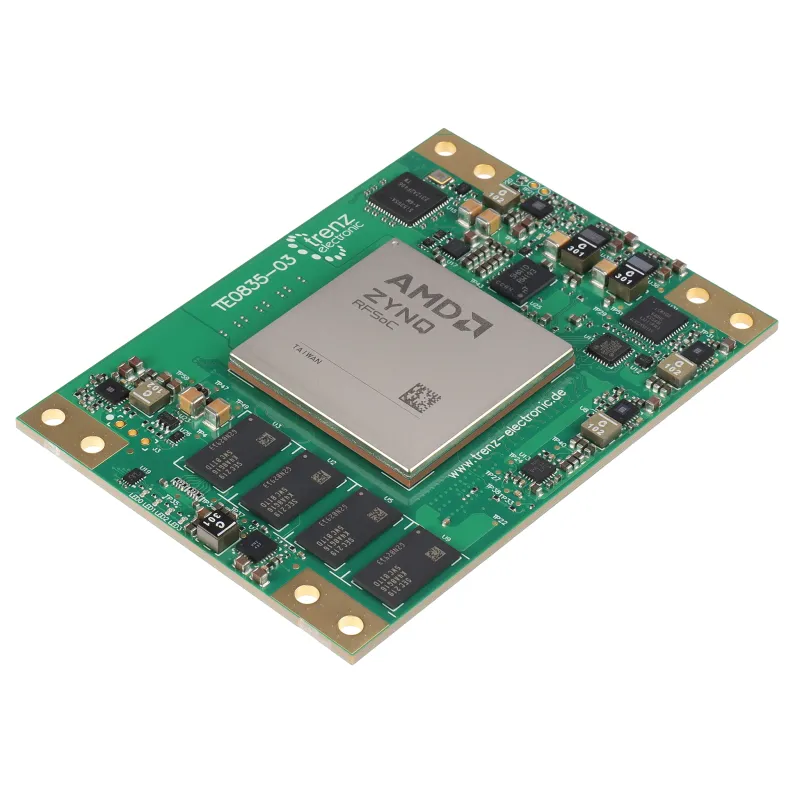

The Trenz Electronic TE0835-03-TXE81-A is a compact RFSoC module based on the AMD Zynq™ UltraScale+™ RFSoC XCZU47DR-1FFVE1156E Gen3. It combines programmable logic, Arm processing, high-speed RF data converters, DDR4 memory, boot flash, clock-generation circuitry, high-speed transceivers, Ethernet, USB, and a system-controller CPLD in a 6.5 × 9 cm module.
The module is designed for advanced communications, software-defined radio, multiband and multimode radio systems, cable infrastructure, DOCSIS equipment, high-speed digital signal processing, instrumentation, and custom RF platforms.
Key features include:
- AMD Zynq™ UltraScale+™ RFSoC XCZU47DR-1FFVE1156E Gen3
- Quad-core Arm Cortex-A53 MPCore processor up to 1.3 GHz
- Dual-core Arm Cortex-R5 real-time processor
- 8 × 14-bit RF-ADCs with sampling rates up to 5 GSPS
- 8 × 14-bit RF-DACs with sampling rates up to 9.85 GSPS
- 4 GByte DDR4 SDRAM
- 128 MByte SPI boot flash
- 2 Kbit I²C EEPROM with EUI-48™ node identity
- Lattice MachXO2 system-controller CPLD
- Programmable high-performance DSPLL
- USB 2.0 OTG transceiver
- Gigabit Ethernet transceiver
- 3 oscillators
- 4 user LEDs
- 2 × Samtec Razor Beam ST5 board-to-board connectors
- 8 GTY transceivers
- 4 GTR transceivers
- 40 total I/Os
- 20 LVDS interfaces
- 32 MIO interfaces
- 6.5 × 9 cm form factor
- Extended component temperature range of 0°C to +85°C
The TE0835-03-TXE81-A is a module-only version. A suitable carrier board and thermal solution should be selected according to the intended application and system design.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product | Trenz Electronic TE0835-03-TXE81-A RFSoC module |
| RFSoC device | AMD Zynq™ UltraScale+™ RFSoC XCZU47DR-1FFVE1156E Gen3 |
| FPGA/SoC architecture | UltraScale+ |
| FPGA/SoC family | Zynq |
| FPGA/SoC type | RFSoC |
| Device speed grade | -1 |
| Device package | FFVE1156 |
| Application processor | Quad-core Arm Cortex-A53 MPCore, up to 1.3 GHz |
| Real-time processor | Dual-core Arm Cortex-R5 |
| RF analog-to-digital converters | 8 × 14-bit RF-ADCs, up to 5 GSPS |
| RF digital-to-analog converters | 8 × 14-bit RF-DACs, up to 9.85 GSPS |
| DDR4 memory | 4 GByte DDR4 SDRAM |
| SPI boot flash | 128 MByte |
| I²C EEPROM | 2 Kbit serial EEPROM with EUI-48™ node identity |
| System controller | Lattice MachXO2 CPLD |
| Clocking | Programmable high-performance DSPLL and 3 oscillators |
| Ethernet | Gigabit Ethernet transceiver |
| USB | USB 2.0 OTG transceiver |
| User indicators | 4 × user LEDs |
| Board-to-board connectors | 2 × Samtec Razor Beam ST5, 2 × 80-pin |
| Total I/O | 40 |
| LVDS interfaces | 20 |
| MIO interfaces | 32 |
| GTY transceivers | 8 |
| GTR transceivers | 4 |
| Module form factor | 6.5 × 9 cm |
| Component temperature range | 0°C to +85°C |
| Input supply | Refer to the applicable TE0835-03 technical documentation for the current revision power-input requirements |
| Manufacturing | Developed and manufactured in Germany |
The TE0835-03-TXE81-A belongs to the TE0835-03 hardware revision. Revision-specific power, memory-timing, connector, and configuration details should be checked against the current technical documentation before a custom carrier-board design is finalized.
3) Tech Support/Dokuments
Web available technical information usually covers the TE0835 technical reference material, RFSoC resources, hardware interfaces, memory configuration, power requirements, clocking, pin assignments, board-to-board connectors, CPLD functions, reference designs, hardware-revision information, and development procedures.
There are the following technical-support resources:
- TE0835 Technical Reference Manual
- TE0835 hardware and interface documentation
- Reference designs and source files
- CPLD firmware and configuration information
- Schematics and assembly documentation
- PCB design and STEP-model information
- Trace-length and signal-integrity information
- Product-change notifications
- AMD Zynq™ UltraScale+™ RFSoC documentation
- Vivado Enterprise Edition design-tool information
- Technical-support forum
The TE0835-03 hardware revision includes updated power-supply circuitry, memory components, I²C functions, clocking, LED circuitry, and board-level design details compared with earlier revisions.
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- TEB0835-03-A PCIe baseboard for Trenz Electronic TE0835-03 RFSoC modules
- KK0835-03 heat spreader with fan for TE0835-03 RFSoC modules
- Compatible TE0835-03 carrier boards
- Suitable JTAG and development accessories listed for the TE0835 product family
5) Downloads/Links
- TE0835-03-TXE81-A Product Page
- TE0835 Public Documentation
- PCN-20250401 TE0835-02 to TE0835-03 Hardware Revision Change
- AMD Zynq™ UltraScale+™ RFSoC Product Page
- Vivado Enterprise Edition
- Support Forum
6) What is in the package
The package contains.
- 1 x TE0835-03-TXE81-A Trenz Electronic RFSoC module with AMD Zynq™ UltraScale+™ RFSoC ZU47DR
