Description and Technical Data:
1) Overview/Key Features

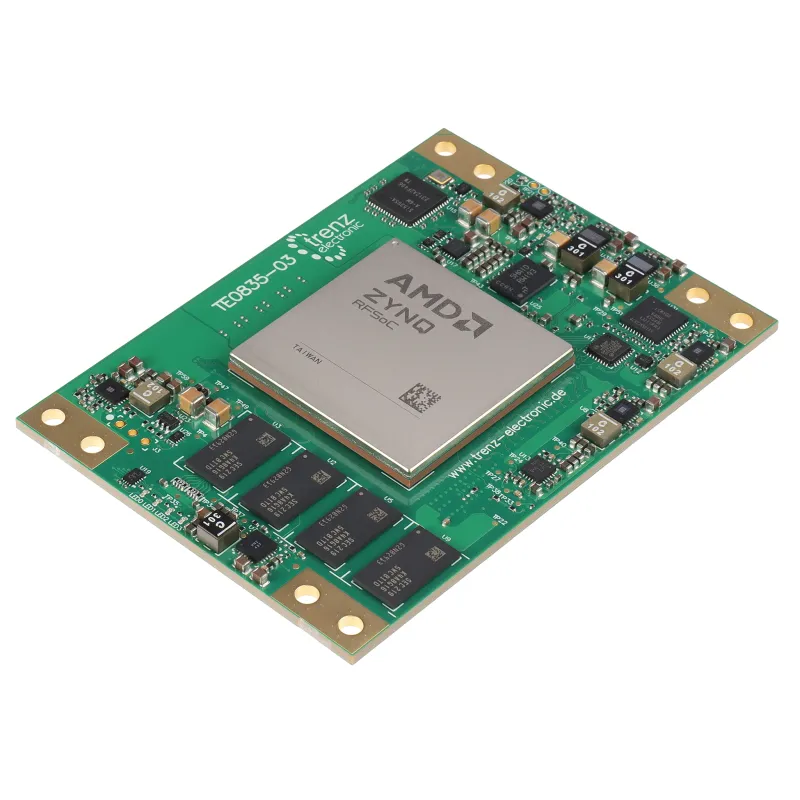

The Trenz Electronic TE0835-03-TXE91-A is an extended-grade RFSoC module based on the AMD Zynq™ UltraScale+™ RFSoC XCZU47DR-1FFVE1156E Gen3. It combines programmable logic, quad-core Arm Cortex-A53 processing, dual-core Arm Cortex-R5 real-time processing, high-speed RF data converters, memory, connectivity, and clock-management functions in a compact 6.5 × 9 cm module.
Key features include:
- AMD Zynq™ UltraScale+™ RFSoC XCZU47DR-1FFVE1156E Gen3
- 8 × 14-bit RF-ADCs with sampling rates up to 5 GSPS
- 8 × 14-bit RF-DACs with sampling rates up to 9.85 GSPS
- Quad-core Arm Cortex-A53 MPCore processor up to 1.3 GHz
- 4 × 2 GByte DDR4 SDRAM
- 2 × 64 MByte SPI boot flash memory
- 2 × Samtec Razor Beam ST5 board-to-board connectors
- USB 2.0 OTG transceiver
- Gigabit Ethernet transceiver
- Lattice MachXO2 system-controller CPLD
- Programmable high-performance DSPLL
- 4 × user LEDs
- Compact 90 × 65 mm form factor
- Extended component temperature range of 0°C to +85°C
The module is intended for demanding applications such as multiband and multimode radio systems, cable infrastructure, DOCSIS equipment, high-speed digital signal processing, communications, instrumentation, and custom RF platforms. The module’s operating temperature depends on the customer design and cooling solution.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product | Trenz Electronic TE0835-03-TXE91-A RFSoC module |
| RFSoC device | AMD Zynq™ UltraScale+™ RFSoC XCZU47DR-1FFVE1156E Gen3 |
| Device speed grade | -1 |
| Device package | FFVE1156 |
| Application processor | Quad-core Arm Cortex-A53 MPCore, up to 1.3 GHz |
| Real-time processor | Dual-core Arm Cortex-R5 |
| RF analog-to-digital converters | 8 × 14-bit RF-ADCs, up to 5 GSPS |
| RF digital-to-analog converters | 8 × 14-bit RF-DACs, up to 9.85 GSPS |
| DDR4 memory | 4 × 2 GByte DDR4 SDRAM; 8 GByte total |
| DDR4 bus width | 64-bit |
| SPI boot flash | 2 × 64 MByte; dual-parallel configuration |
| I²C EEPROM | 2 Kbit serial EEPROM with EUI-48™ node identity |
| System controller | Lattice MachXO2 CPLD |
| Ethernet | Gigabit Ethernet transceiver |
| USB | USB 2.0 OTG transceiver |
| Clocking | 3 oscillators and programmable high-performance DSPLL |
| User indicators | 4 × user LEDs |
| Board-to-board connectors | 2 × Samtec Razor Beam ST5, 2 × 80-pin |
| Total I/O | 40 I/Os |
| LVDS | 20 |
| MIO | 32 |
| GTY transceivers | 8 |
| GTR transceivers | 4 |
| Input supply voltage | 5 V ±10% |
| Dimensions | 90 × 65 mm |
| Component temperature range | 0°C to +85°C, extended range |
| Module operating temperature | Dependent on customer design and cooling solution |
| Manufacturing | Developed and manufactured in Germany |
Other TE0835 assembly options with different RFSoC devices, speed grades, and temperature ranges are available on request.
3) Tech Support/Dokuments
Web available technical information usually covers the TE0835 Technical Reference Manual, product overview, key features, hardware interfaces, memory, clocking, power, pin assignments, board-to-board connector information, reference designs, CPLD firmware, getting-started information, product-change notifications, and carrier-board compatibility.
There are the following technical-support resources:
- Technical Reference Manual
- Reference-design documentation and source projects
- TE0835 CPLD firmware documentation
- TE0835 getting-started documentation
- Product-change notifications
- Pinout and trace-length information
- 6.5 × 9 cm carrier-board information
- Support forum and technical support contact
Vivado Enterprise Edition is identified as the recommended software environment for designs requiring support for AMD devices.
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- Trenz Electronic TEB0835 RFSoC carrier board for TE0835 modules
- Trenz Electronic TE0790 JTAG programmer for compatible CPLD programming and development workflows
- 6.5 × 9 cm carrier boards compatible with Trenz Electronic module sockets
5) Downloads/Links
- TE0835 TRM - Public Docs
- TE0835 Resources - Public Docs
- TE0835 CPLD Firmware - Public Docs
- Vivado Enterprise Edition
- AMD Zynq™ UltraScale+™ RFSoC Product Page
- Support Forum
6) What is in the package
The package contains.
- 1 x TE0835-03-TXE91-A Trenz Electronic RFSoC module with AMD Zynq™ UltraScale+™ RFSoC ZU47DR
