Description and Technical Data:
1) Overview/Key Features

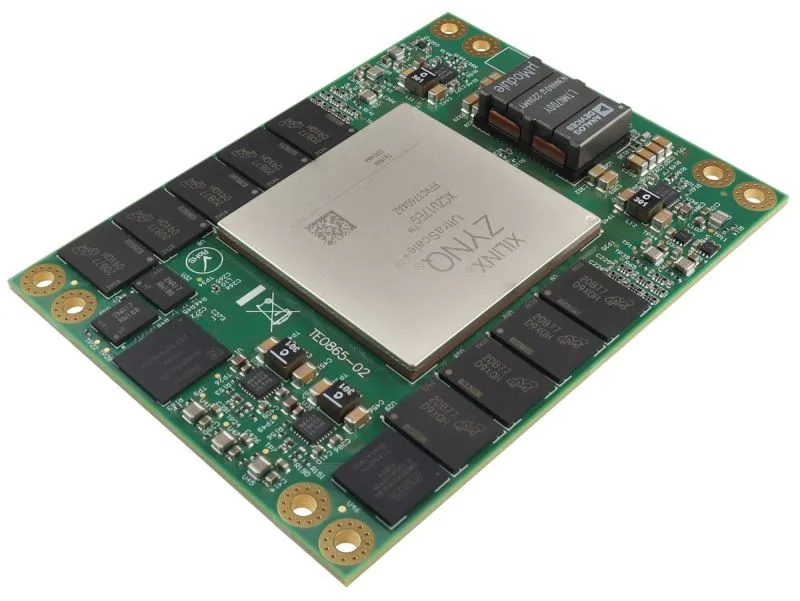

The TE0865-02-ABI81MA is a high-performance MPSoC module based on the AMD Zynq™ UltraScale+™ ZU11EG-1I. It combines programmable logic, application-processing resources, ECC-protected DDR4 memory, high-speed transceivers, non-volatile storage, Ethernet, USB, and configurable high-density I/O in a compact 7.5 × 10 cm module.
Key features include:
- AMD Zynq™ UltraScale+™ XCZU11EG-1FFVC1760I MPSoC
- Industrial temperature-grade device with -1 speed grade
- 4 GB DDR4 SDRAM with ECC connected to the processing system
- 4 GB DDR4 SDRAM connected to the programmable logic
- 2 × 64 MB SPI boot Flash in dual-parallel configuration
- 8 GB eMMC memory
- 2 Kbit MAC-address serial EEPROM with EUI-48 node identity
- On-board Altera® MAX® 10 FPGA used as a CPLD
- 6 MEMS oscillators
- Gigabit Ethernet transceiver PHY
- High-speed USB 2.0 ULPI transceiver with full OTG support
- 96 high-density I/Os
- 240 high-performance I/Os
- 21 MIOs
- 32 PL GTH transceivers
- 16 PL GTY transceivers
- 4 PS GTR transceivers
- 4 Samtec Accelerate HD board-to-board connectors
- 12 V input supply
- Variable bank I/O power input
- Rugged high-speed stacking connections
- Module dimensions of 7.5 × 10 cm
- Component temperature range of -40 °C to +85 °C
The module is intended for embedded computing, industrial control, FPGA-based acceleration, high-speed data processing, communications, image processing, and other applications requiring substantial programmable-logic and processing-system resources. The actual operating temperature range depends on the customer design, application conditions, and cooling solution.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | MPSoC module |
| MPSoC device | AMD Zynq™ UltraScale+™ XCZU11EG-1FFVC1760I |
| MPSoC family | Zynq UltraScale+ |
| MPSoC architecture | UltraScale+ |
| Speed grade | -1 |
| Temperature grade | Industrial |
| MPSoC package | C1760 |
| Processing-system memory | 4 GB DDR4 SDRAM with ECC |
| Programmable-logic memory | 4 GB DDR4 SDRAM |
| SPI boot Flash | 2 × 64 MB, dual-parallel configuration |
| Total SPI boot Flash | 128 MB |
| eMMC memory | 8 GB |
| Identification memory | 2 Kbit serial EEPROM with EUI-48 node identity |
| On-board programmable device | Altera® MAX® 10 FPGA used as CPLD |
| Clock sources | 6 MEMS oscillators |
| Ethernet | Gigabit Ethernet transceiver PHY |
| USB | High-speed USB 2.0 ULPI transceiver with full OTG support |
| High-density I/O | 96 HD I/Os |
| High-performance I/O | 240 HP I/Os |
| PS MIO | 21 MIOs |
| PL GTH | 32 transceivers |
| PL GTY | 16 transceivers |
| PS GTR | 4 transceivers |
| Board-to-board connectors | 4 × Samtec Accelerate HD connectors |
| Input supply voltage | 12 V |
| I/O power | Variable bank I/O power input |
| Component temperature range | -40 °C to +85 °C |
| Module dimensions | 7.5 × 10 cm |
| Form factor | 7.5 × 10 cm |
| FPGA/SoC type | MPSoC |
The module is supplied with high-speed stacking connectivity and power-management circuitry for the on-board voltage rails.
3) Tech Support/Dokuments
Web available technical information usually covers product features, hardware properties, electrical and mechanical characteristics, board dimensions, schematics, assembly documentation, reference designs, software examples, and product-change information.
There are the following technical resources:
- TE0865 product documentation
- TE0865 Wiki documentation
- TE0865 Test Board Reference Design documentation
- Hardware design-support files
- Schematics and assembly documentation
- Mechanical and dimensional information
- 3D and board-model resources
- Vivado and Vitis reference-design files
- Basic Linux example resources
- PetaLinux-related documentation
- Product-change notifications
- Support forum resources
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The manufacturer’s documentation references the following related product:
- TE0865 Test Board Reference Design and associated TE0865 test-board hardware
The TE0865 test-board resources support the TE0865-02-ABI81MA module and provide example designs for functions including DDR memory, USB, Ethernet, SD, I²C, QSPI, and the MAC address stored in EEPROM.
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x TE0865-02-ABI81MA MPSoC module with AMD Zynq™ UltraScale+™ ZU11EG
