Description and Technical Data:
1) Overview/Key Features

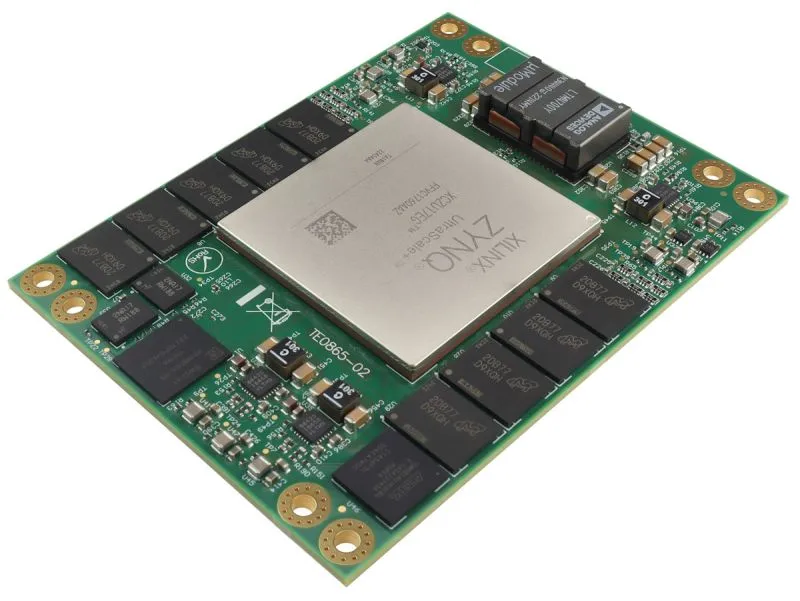

The TE0865-02-DGE83MA is a high-performance MPSoC module based on the AMD Zynq™ UltraScale+™ ZU17EG-2E device. It combines programmable logic, multi-core processing, high-speed memory, non-volatile storage, Ethernet, USB, extensive configurable I/O, and integrated power management in a rugged 7.5 × 10 cm form factor.
Key features include:
- AMD Zynq™ UltraScale+™ XCZU17EG-2FFVC1760E MPSoC
- -2 speed grade and extended-temperature component rating
- 4 GB DDR4 SDRAM with ECC connected to the processing system
- 4 GB DDR4 SDRAM connected to the programmable logic
- 8 GB e.MMC memory
- 2 × 128 MB SPI boot Flash in dual-parallel configuration
- 2 Kbit MAC-address serial EEPROM with EUI-48™ node identity
- Intel® MAX® 10 FPGA used as an on-board CPLD
- Gigabit Ethernet transceiver PHY
- High-speed USB 2.0 ULPI transceiver with full OTG support
- 96 HD I/Os, 240 HP I/Os, and 21 MIOs
- 32 PL GTH lanes, 16 PL GTY lanes, and 4 PS GTR lanes
- 4 Samtec Accelerate HD board-to-board connectors
- 12 V input supply and variable bank I/O power input
- Integrated switch-mode power supplies
- Suitable for embedded processing, industrial control, high-speed data acquisition, networking, and FPGA-based acceleration applications
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | Zynq™ UltraScale+™ MPSoC module |
| MPSoC device | AMD Zynq™ UltraScale+™ XCZU17EG-2FFVC1760E |
| Device engine | EG |
| Speed grade | -2 |
| Package | C1760 |
| Component temperature rating | Extended, 0 °C to +85 °C |
| Module operating temperature | Depends on the customer design and cooling solution |
| DDR4 PS memory | 4 GB DDR4 SDRAM with ECC |
| DDR4 PS data width | 64 bit |
| DDR4 PS speed | 2400 MT/s |
| DDR4 PL memory | 4 GB DDR4 SDRAM |
| DDR4 PL data width | 64 bit |
| DDR4 PL speed | Up to 2666 MT/s |
| e.MMC memory | 8 GB |
| Boot Flash | 2 × 128 MB SPI Flash in dual-parallel mode |
| MAC-address memory | 2 Kbit serial EEPROM with EUI-48™ node identity |
| On-board CPLD | Intel® MAX® 10 FPGA |
| Ethernet | Gigabit Ethernet transceiver PHY |
| USB | High-speed USB 2.0 ULPI transceiver with full OTG support |
| MIO | 21 MIOs |
| HD I/O | 96 HD I/Os |
| HP I/O | 240 HP I/Os |
| PL GTH | 32 lanes |
| PL GTY | 16 lanes |
| PS GTR | 4 lanes |
| Board-to-board connectors | 4 × Samtec Accelerate HD connectors |
| Input supply voltage | 12 V |
| Form factor | 7.5 × 10 cm |
| FPGA/SoC architecture | UltraScale+ |
| FPGA/SoC family | Zynq |
| FPGA/SoC type | MPSoC |
3) Tech Support/Dokuments
Web available technical information usually covers the TE0865 technical reference material, module features, interface descriptions, electrical information, connector details, carrier-board compatibility, reference designs, software examples, and development-tool requirements.
There are the following technical support resources:
- TE0865 technical reference documentation
- TE0865 test-board documentation
- TE0865 reference designs for Vivado, Vitis, and PetaLinux
- Hardware design files and board-support information
- Reference-design source code and configuration files
- Carrier-board compatibility information
- Support forum resources
- Recommended AMD Vivado Enterprise Edition development software
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
Available related products and development accessories include:
- TEBT0865 test carrier for TE0865 modules
- TE0790 JTAG/UART adapter
- TEI0005 JTAG adapter for the on-board CPLD
- Suitable 7.5 × 10 cm carrier boards
- Compatible Samtec ADM6/ADF6 board-to-board connector solutions
5) Downloads/Links
- TE0865 TRM
- TE0865 Test Board
- TE0865 Reference Designs
- 7.5 x 10 Carriers
- TEBT0865 Resources
- Vivado Enterprise Edition
6) What is in the package
The package contains.
- 1 x TE0865-02-DGE83MA MPSoC module with AMD Zynq™ UltraScale+™ ZU17EG
