Description and Technical Data:
1) Overview/Key Features

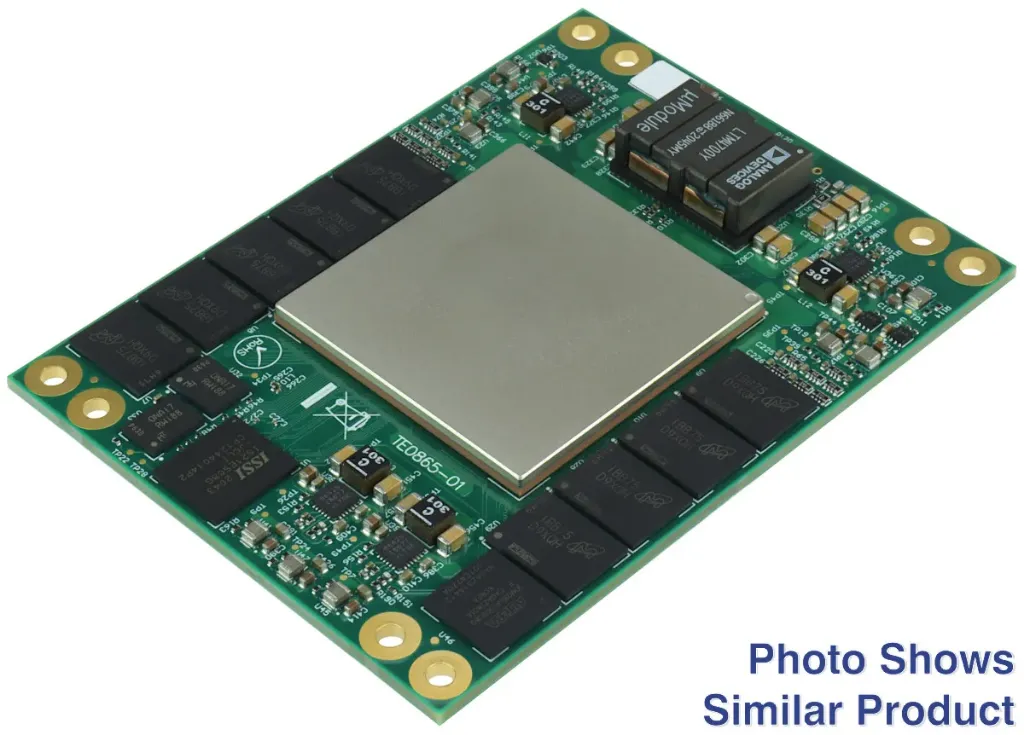

The TE0865-02-FBE83MA is a high-performance MPSoC module based on the AMD Zynq™ UltraScale+™ ZU19EG-1E device. It combines substantial programmable-logic resources with a powerful processing system, ECC-protected DDR4 memory, high-speed transceivers, onboard storage, Ethernet, USB connectivity, and rugged board-to-board interfaces.
The module is suitable for demanding embedded applications such as industrial control, machine vision, communications, signal processing, high-performance data acquisition, and custom FPGA-based computing platforms.
Key features:
- AMD Zynq™ UltraScale+™ XCZU19EG-1FFVC1760E MPSoC
- -1 speed grade
- Extended-temperature device grade
- 4 GB DDR4 SDRAM with ECC connected to the processing system
- 4 GB DDR4 SDRAM connected to the programmable logic
- 2 × 128 MB SPI boot Flash in dual-parallel configuration
- 8 GB e.MMC memory
- 2 Kbit serial EEPROM for MAC-address storage and EUI-48 node identity
- Onboard Intel® MAX® 10 FPGA used as a CPLD system controller
- 6 × MEMS oscillators
- Gigabit Ethernet transceiver PHY
- High-speed USB 2.0 ULPI transceiver with full OTG support
- 96 HD I/Os
- 240 HP I/Os
- 21 MIOs
- 32 × PL GTH transceivers
- 16 × PL GTY transceivers
- 4 × PS GTR transceivers
- 4 × Samtec AcceleRate HD board-to-board connectors
- 12 V input supply
- Variable bank I/O power input
- Compact 7.5 × 10 cm module format
- Graphics processing unit integrated in the Zynq UltraScale+ device
- Component temperature range of 0°C to +85°C; actual module operating temperature depends on the customer design and cooling solution
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | MPSoC module |
| MPSoC device | AMD Zynq™ UltraScale+™ XCZU19EG-1FFVC1760E |
| Zynq device | ZU19EG-1E |
| Speed grade | -1 |
| Device package | C1760 |
| FPGA/SoC architecture | UltraScale+ |
| FPGA/SoC family | Zynq |
| FPGA/SoC type | MPSoC |
| Processing-system memory | 4 GB DDR4 SDRAM with ECC |
| Programmable-logic memory | 4 GB DDR4 SDRAM |
| SPI boot Flash | 2 × 128 MB, dual parallel |
| Total SPI boot Flash capacity | 256 MB |
| e.MMC memory | 8 GB |
| MAC-address memory | 2 Kbit serial EEPROM with EUI-48 node identity |
| System controller | Intel® MAX® 10 FPGA used as CPLD |
| MEMS oscillators | 6 |
| Ethernet | Gigabit Ethernet transceiver PHY |
| USB | High-speed USB 2.0 ULPI transceiver with full OTG support |
| HD I/Os | 96 |
| HP I/Os | 240 |
| MIOs | 21 |
| PL GTH transceivers | 32 |
| PL GTY transceivers | 16 |
| PS GTR transceivers | 4 |
| Board-to-board connectors | 4 × Samtec AcceleRate HD |
| Input supply voltage | 12 V |
| I/O power | Variable bank I/O power input |
| Form factor | 7.5 × 10 cm |
| Component temperature range | 0°C to +85°C |
| Graphics processor | Integrated GPU |
3) Tech Support/Dokuments
Web available technical information usually covers the TE0865 module family, including the technical reference manual, schematics, assembly information, reference designs, application notes, CPLD firmware, product-change documentation, pinout information, connector details, trace-length data, mechanical files, and carrier-board integration guidance.
There are the following technical support resources:
- Technical Reference Manual
- TE0865 family documentation
- Hardware design files
- Schematics and assembly drawings
- Reference designs with source files
- Vivado and Vitis design support
- PetaLinux design support
- CPLD firmware information
- Product Change Notification documentation
- Pinout and connector information
- Board-to-board interface information
- Trace-length information
- Mechanical and STEP model files
- Carrier-board integration information
- Technical support forum
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- KK0865-02 — Heat spreader with fan specifically designed for TE0865-02 modules.
- TEBT0865-01 — Testboard for TE0865 MPSoC modules with USB A, Ethernet RJ45, Firefly, SD card holder, and Samtec AcceleRate HD board-to-board connectivity.
5) Downloads/Links
- Trenz Electronic TE0865 Wiki
- TE0865 Test Board
- PCN-20241008 TE0865-02 DDR4 SDRAM Change
- TE0865 Zynq UltraScale+ MPSoC Modules
- Vivado Enterprise Edition
- Support Forum
6) What is in the package
The package contains.
- 1 x TE0865-02-FBE83MA MPSoC module with AMD Zynq™ UltraScale+™ ZU19EG-1E
