Description and Technical Data:
1) Overview/Key Features

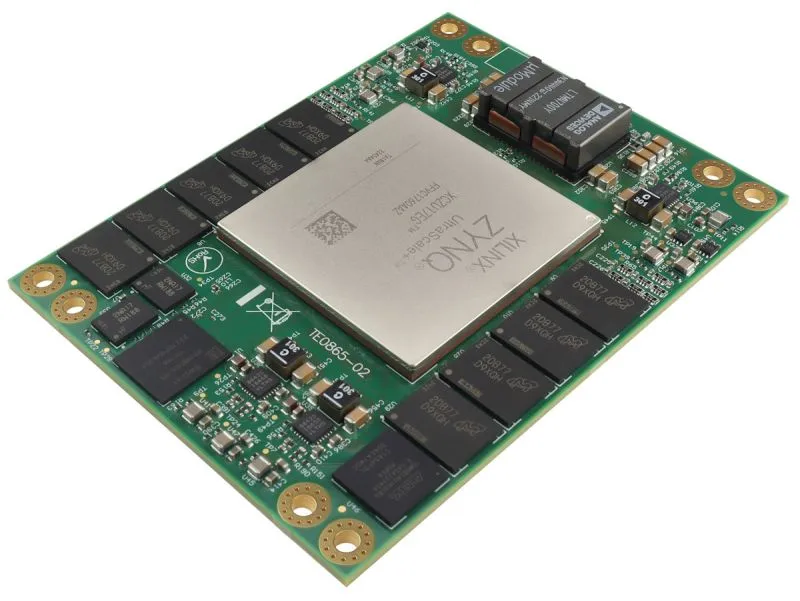

The TE0865-02-FGE83MA is a high-performance MPSoC module based on the AMD Zynq™ UltraScale+™ ZU19EG-2E device. It combines programmable logic, processing-system resources, high-speed transceivers, substantial DDR4 memory, non-volatile storage, Ethernet connectivity, and rugged board-to-board expansion interfaces in a compact 7.5 × 10 cm form factor.
Key features include:
- AMD Zynq™ UltraScale+™ XCZU19EG-2FFVC1760E MPSoC
- Speed grade: -2E
- 4 GB DDR4 SDRAM with ECC connected to the processing system
- 4 GB DDR4 SDRAM connected to the programmable logic
- 2 × 128 MB SPI boot Flash in dual-parallel configuration
- 8 GB eMMC memory
- 2 Kbit MAC-address serial EEPROM with EUI-48 node identity
- On-board Altera® MAX® 10 FPGA used as a CPLD
- 6 MEMS oscillators
- Gigabit Ethernet PHY
- High-speed USB 2.0 ULPI transceiver with full OTG support
- 96 high-density I/Os
- 240 high-performance I/Os
- 21 MIOs
- 32 PL GTH transceivers
- 16 PL GTY transceivers
- 4 PS GTR transceivers
- 4 Samtec Accelerate HD board-to-board connectors
- 12 V input supply
- Variable bank I/O power input
- Extended temperature-rated components from 0 °C to +85 °C
- Configurable I/O through rugged high-speed stacking connections
The module is suitable for demanding embedded computing, industrial control, high-speed data processing, communications, image processing, and FPGA-based acceleration applications. The usable operating temperature depends on the customer design and cooling solution.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | MPSoC module |
| MPSoC device | AMD Zynq™ UltraScale+™ XCZU19EG-2FFVC1760E |
| MPSoC family | Zynq UltraScale+ |
| MPSoC architecture | UltraScale+ |
| Speed grade | -2E |
| MPSoC package | F1760 |
| Processing-system memory | 4 GB DDR4 SDRAM with ECC |
| Programmable-logic memory | 4 GB DDR4 SDRAM |
| SPI boot Flash | 2 × 128 MB, dual-parallel configuration |
| eMMC memory | 8 GB |
| Identification memory | 2 Kbit serial EEPROM with EUI-48 node identity |
| On-board programmable device | Altera® MAX® 10 FPGA used as CPLD |
| Clock sources | 6 MEMS oscillators |
| Ethernet | Gigabit Ethernet PHY |
| USB | High-speed USB 2.0 ULPI transceiver with full OTG support |
| High-density I/O | 96 HD I/Os |
| High-performance I/O | 240 HP I/Os |
| PS MIO | 21 MIOs |
| PL GTH | 32 transceivers |
| PL GTY | 16 transceivers |
| PS GTR | 4 transceivers |
| Board-to-board connectors | 4 × Samtec Accelerate HD connectors |
| Input supply voltage | 12 V |
| I/O power | Variable bank I/O power input |
| Module dimensions | 7.5 × 10 cm |
| Component temperature range | 0 °C to +85 °C |
| FPGA/SoC type | MPSoC |
| Form factor | 7.5 × 10 cm |
Specifications are based on the product information published for the module.
3) Tech Support/Dokuments
Web available technical information usually covers product descriptions, key features, electrical and mechanical information, schematics, assembly documentation, dimensional information, 3D models, reference designs, design-support files, software recommendations, and product-change documentation.
There are the following technical resources:
- Product information and feature description
- Hardware design-support files
- Schematics
- Assembly diagrams
- 3D PDF documentation
- Dimensional drawings
- STEP models
- Reference designs with source files
- Basic Linux example resources
- Vivado Enterprise Edition design-tool information
- Product-change notifications
- TE0865 Wiki documentation
- Support forum information
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The product page references the following compatible or related product categories:
- CompactPCI Serial cards with FPGA or SoC devices
- TEC0810 3U, 4HP CompactPCI-Serial carrier for compatible UltraSOM+ modules
- TE0865-related carrier and test-board solutions
- TE0865 reference-design resources
Carrier-board selection should be based on the required power input, connector arrangement, I/O routing, cooling method, transceiver usage, and intended enclosure.
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x TE0865-02-FGE83MA MPSoC module with AMD Zynq™ UltraScale+™ ZU19EG
