Description and Technical Data:
1) Overview/Key Features

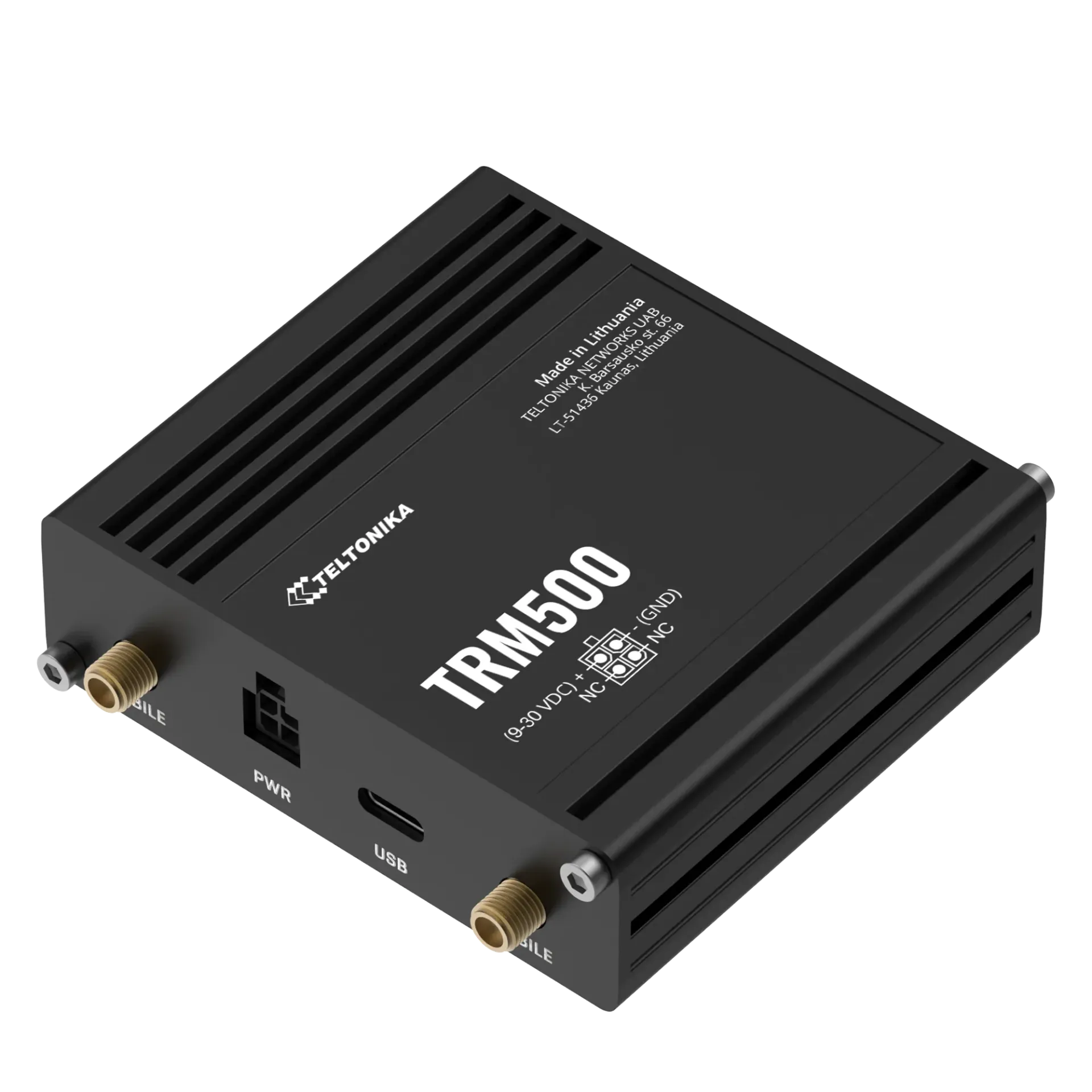

The TRM500 is a compact, industrial-grade 5G USB modem designed to provide high-speed cellular connectivity to laptops, industrial computers, routers, gateways, and other host devices. It supports 5G Sub-6 GHz networks with download speeds of up to 3.4 Gbps, while maintaining backward compatibility with 4G LTE Cat 19 and 3G networks.
- 5G Sub-6 GHz connectivity
- Download speeds of up to 3.4 Gbps
- Backward compatibility with 4G LTE Cat 19 and 3G networks
- USB Type-C interface for simultaneous data communication and powering
- 4 x SMA antenna connectors for improved cellular coverage
- Industrial-grade construction
- Compact and lightweight design
- DIN rail mounting option
- Suitable for industrial, IoT, transportation, remote-access, and broadband backup applications
The TRM500 can be used as a high-speed cellular modem for devices that require reliable 5G access without an integrated cellular modem.
Minimum orders apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | Industrial 5G USB modem |
| Mobile technology | 5G NR Sub-6 GHz, 4G LTE, and 3G |
| 5G download speed | Up to 3.4 Gbps |
| LTE category | LTE Cat 19 |
| Host interface | USB Type-C |
| Power and data | USB Type-C interface supports simultaneous network data and powering |
| Cellular antenna connectors | 4 x SMA |
| SIM interface | 1 x Mini SIM slot |
| USB operating modes | Modem and network-interface operation, depending on host-system support |
| Mounting | Desktop installation and DIN rail mounting with a compatible mounting accessory |
| Housing | Compact industrial enclosure |
| Operating temperature | Suitable for industrial-temperature applications |
| Mobile network fallback | Automatic fallback from 5G to 4G LTE and 3G |
TRM500 is a compact 5G modem with USB Type-C connectivity, 4G LTE Cat 19 and 3G backward compatibility, 4 x SMA antenna connectors, and speeds of up to 3.4 Gbps. teltonika-networks.com
3) Tech Support/Dokuments
Web available technical information usually covers first-start installation, USB Type-C connection, SIM installation, cellular-network configuration, antenna installation, modem operation, host-device compatibility, driver and operating-system considerations, firmware, troubleshooting, certifications, and mounting options.
There are the following technical resources:
- Quick Start Guide
- Firmware Downloads
- Package Downloads
- Manual
- Configuration Examples
- Interfaces documentation
- Certification & Approvals documentation
- Security documentation
- Product Change Notifications
- Software Development Kit documentation
- OSS information
- FAQ
Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
- External 5G/LTE antennas
- Cellular antenna extension cables
- DIN rail mounting accessory
- USB Type-C cables and host adapters
- RMS remote management service
