Description and Technical Data:
1) Overview/Key Features

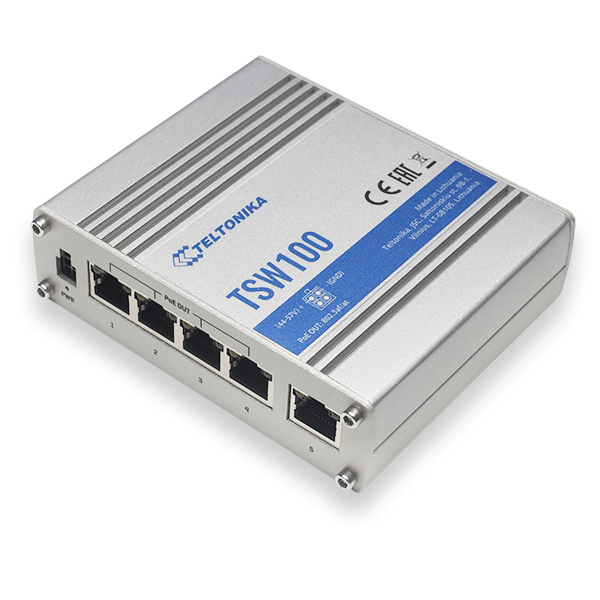

The Teltonika TSW100 is an unmanaged industrial Gigabit Ethernet switch with five Ethernet ports and PoE+ output on ports 1–4. It supports IEEE 802.3af and IEEE 802.3at, with up to 30 W per port and a 120 W total PoE power budget. PoE wiring is Alternative A or Alternative B depending on the order code. Profinet Class A conformance is available with an optional order code.
Minimum orders apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Ethernet ports | 5 × RJ45, 10/100/1000 Mbps; auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Optional industrial protocol | Profinet Class A conformance, available with optional order code |
| PoE+ ports | Ports 1–4 |
| PoE standards | IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2) |
| PoE wiring alternative | Alternative A for order code TSW100 1***; Alternative B for order code TSW100 0*** |
| Maximum PoE power per port (at PSE) | 30 W |
| PoE power budget (at PSE) | 120 W |
| Non-blocking bandwidth | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
| Power connector | 4-pin industrial DC power socket |
| Input voltage range | 7–57 VDC |
| PoE-out input voltage range | 44–57 VDC |
| Power consumption | Idle: 2 W; maximum (no PoE): 9 W; PoE maximum: 129 W |
| Status LEDs | 1 × Power LED; 10 × ETH status LEDs |
| Other physical interfaces | 1 × grounding screw |
| Casing material | Anodised aluminium housing and panels |
| Dimensions (W × H × D) | 115 × 32.2 × 101.2 mm |
| Weight | 350 g |
| Mounting options | DIN rail, wall mount, or flat surface; all require an additional kit |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95%, non-condensing |
| Ingress protection | IP30 |
3) Tech Support/Dokuments
Web available technical information usually covers installation, port indicators, power input, PoE standards and power budget, and order-code-dependent PoE wiring alternatives. Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
The manufacturer specifies that an additional mounting kit is required for DIN rail, wall, or flat-surface mounting. Profinet Class A conformance is available with an optional order code.
