Teltonika-Networks

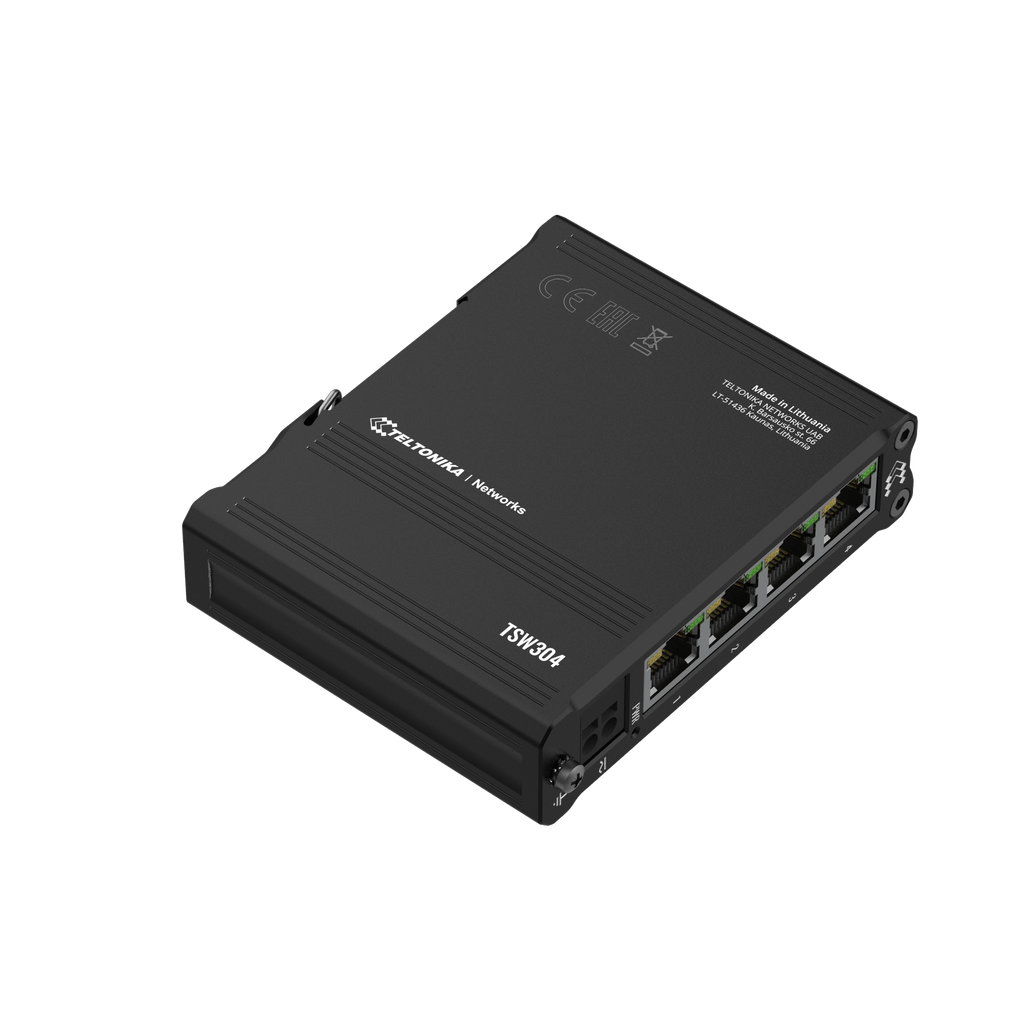

TSW304 (4 x RJ45 ports, 10/100/1000 Mbps)

Din rail switch
74.98 € 74.98 €

Minimum Order Quantity: 2
Origin of Goods: Lithuania
HS Code: 85176200


Description and Technical Data:

1) Overview/Key Features

The Teltonika TSW304 is a compact, industrial unmanaged Ethernet switch with four Gigabit Ethernet ports. It supports auto MDI/MDIX crossover, non-blocking switching with 8 Gbps bandwidth, and a wide range of DC or AC input voltages. The anodised aluminium housing, integrated DIN-rail bracket, IP30 rating and -40 °C to 75 °C operating-temperature range make it suitable for industrial environments. Profinet Class A conformance is available with an optional order code.

Minimum orders apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.

2) Tech Specs

SpecificationDetail
Ethernet ports4 × RJ45, 10/100/1000 Mbps
Ethernet featuresAuto MDI/MDIX crossover
Ethernet standardsIEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Industrial protocolProfinet Class A conformance, available with optional order code
Non-blocking bandwidth8 Gbps
Packet buffer128 KB
MAC address table2K entries
Jumbo frame support9216 bytes
Power connector2-pin industrial DC power socket
Input voltage range7–57 VDC; 9–40 VAC
Passive PoEETH1 input, Mode B, 9–30 VDC; not compatible with IEEE 802.3af, 802.3at or 802.3bt
Power consumptionIdle: 0.26 W; maximum: 1.44 W
Status LEDs8 × ETH status LEDs; 1 × Power LED
Other physical interfaces1 × grounding screw
CasingAnodised aluminium housing and panels
Dimensions (W × H × D)102 × 25 × 81.5 mm
Weight210 g
MountingIntegrated DIN-rail bracket; wall and flat-surface mounting require an additional kit
Operating temperature-40 °C to 75 °C
Operating humidity5% to 95%, non-condensing
Ingress protectionIP30

3) Tech Support/Dokuments

Web available technical information usually covers product specifications, installation, interfaces, power input, mounting options, operating conditions and safety information. Fee-based technical support is available from Mirifica Industrial.

4) Related Product Suggestion

A wall-mounting and flat-surface mounting kit is required for those mounting options. Profinet Class A conformance is available with an optional order code.

5) Downloads/Links

6) What is in the package

  • 1 x product

More Details:

SWITCHES
