Description and Technical Data:
1) Overview/Key Features

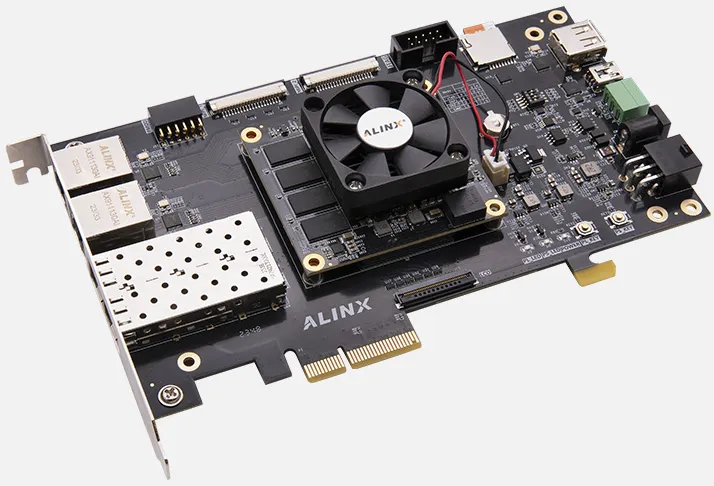

The VD100 is a Versal™ AI Edge development platform based on the VE2302 adaptive SoC. It uses a System-on-Module design with a separate base board, combining high-performance processing, programmable logic, AI acceleration, high-speed memory, networking, video interfaces, storage, and industrial communication interfaces in a single development platform.
- Versal AI Edge VE2302-based System-on-Module
- 4 GB DDR4 memory with a 64-bit data bus
- 8 GB eMMC and 512 Mb QSPI Flash for boot and data storage
- 4 x Arm Cortex-A72 processors and 2 x Arm Cortex-R5F processors
- 34 AI Engine-ML acceleration units and 464 DSP processing units
- 2 x Gigabit Ethernet interfaces
- 2 x SFP+ optical-fiber interfaces with transceiver rates up to 12.5 Gb/s per channel
- PCIe 3.0 x4 interface
- 2 x 4-lane MIPI interfaces for camera or image-processing applications
- 1 x LVDS display interface
- 1 x USB 2.0 Type-A interface
- USB-to-UART debugging interface
- 1 x CAN/CAN-FD interface
- 1 x 12-pin PMOD expansion interface
- MicroSD card interface
- 10-pin JTAG interface
- User LEDs and push buttons connected to PS and PL resources
The VD100 is suitable for artificial intelligence, edge computing, video and image processing, high-speed data acquisition, industrial communication, data acceleration, and embedded system development.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Adaptive SoC | XCVE2302-SFVA784-1LP-ES Versal AI Edge device |
| Processor system | 4 x Arm Cortex-A72 processors and 2 x Arm Cortex-R5F processors |
| AI acceleration | 34 AI Engine-ML acceleration units |
| DSP resources | 464 DSP processing units |
| DDR4 memory | 4 GB, 64-bit data bus, up to 3200 Mbps data rate |
| eMMC storage | 8 GB |
| QSPI Flash | 512 Mb |
| Gigabit Ethernet | 2 x 10/100/1000 Mbps RJ-45 interfaces; 1 x PS-side and 1 x PL-side interface |
| SFP+ interfaces | 2 x optical-fiber interfaces; up to 12.5 Gb/s per channel |
| PCIe | 1 x PCIe 3.0 x4 interface |
| MIPI | 2 x 4-lane MIPI interfaces |
| Display interface | 1 x LVDS LCD interface |
| USB | 1 x USB 2.0 Type-A interface |
| USB-UART | 1 x USB-to-UART debugging interface using a Mini USB connector |
| CAN | 1 x CAN/CAN-FD interface |
| PMOD | 1 x 12-pin, 2.54 mm pitch expansion interface |
| MicroSD | 1 x MicroSD card holder |
| JTAG | 1 x 10-pin, 2.54 mm standard JTAG interface |
| Clock sources | 33.333 MHz single-ended clock and 200 MHz differential clock |
| User controls | 2 x user push buttons, including PS- and PL-connected controls |
| User indicators | 5 x user LEDs, including indicators on the module and base board |
3) Tech Support/Dokuments
Web available technical information usually covers the VD100 System-on-Module architecture, VE2302 device resources, DDR4 memory, eMMC and QSPI storage, Ethernet, PCIe, SFP+, MIPI, LVDS, USB, UART, CAN-FD, PMOD, MicroSD, JTAG, clocks, LEDs, buttons, and software development using Vivado, Vitis, and PetaLinux.
There are the following technical resources:
- VD100 user manual
- VD100 development-board tutorial documentation
- VD100 core-board documentation
- VD100 base-board documentation
- Hardware schematics
- FPGA and standalone demonstration projects
- Linux demonstration projects
- Hardware description and reference files
- Vivado, Vitis, and PetaLinux development instructions
The available development examples are associated with the 2023.2 software environment.
Contact Mirifica Industrial for further detailed information for your project.
