Description and Technical Data:
1) Overview/Key Features

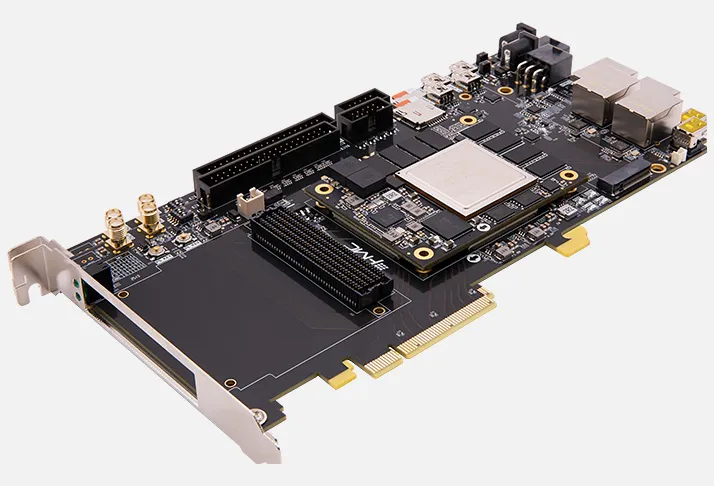

The Z11-P V2.0 is a high-performance development board built around the AMD Zynq™ UltraScale+™ MPSoC XCZU11EG-2FFVC1156I. It combines the ACU11EG system-on-module with a dedicated base board, providing processing-system and programmable-logic DDR4 memory, high-speed PCIe connectivity, FMC expansion, M.2 storage, DisplayPort, Gigabit Ethernet, and a 40-pin expansion interface. The platform is suitable for artificial intelligence, automotive systems, industrial control, machine vision, video processing, communications, data acquisition, and other high-performance embedded applications.
Key features include:
- Quad-core ARM® Cortex™-A53 processor operating at up to 1.3 GHz
- Dual-core ARM® Cortex™-R5F real-time processor operating at up to 533 MHz
- Mali-400 MP2 GPU
- 16 nm FinFET+ FPGA fabric
- 4 GB 64-bit DDR4 SDRAM connected to the processing system
- 4 GB 64-bit DDR4 SDRAM connected to the programmable logic
- 64 MB QSPI Flash
- 32 GB eMMC Flash
- 1 × FMC HPC connector with 59 LVDS I/O pairs and 8 GTH transceiver pairs
- 1 × PCIe Gen3 ×8 interface
- 1 × PS-connected M.2 card slot
- 1 × PS-connected DisplayPort interface
- 2 × Gigabit Ethernet interfaces
- 2 × USB-to-UART interfaces
- 1 × 40-pin expansion port with 34 I/O signals
- 4 × Panasonic board-to-board connectors
- Power, configuration, and user-control indicators
- 12 V single-supply operation
- 222 × 106.7 mm board dimensions
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product model | Z11-P V2.0 |
| MPSoC device | XCZU11EG-2FFVC1156I |
| Application processors | Quad-core ARM Cortex-A53 |
| Real-time processors | Dual-core ARM Cortex-R5F |
| Cortex-A53 frequency | Up to 1.3 GHz |
| Cortex-R5F frequency | Up to 533 MHz |
| GPU | Mali-400 MP2 |
| FPGA fabric process | 16 nm FinFET+ |
| DDR4 SDRAM, PS | 4 GB, 64-bit |
| DDR4 SDRAM, PL | 4 GB, 64-bit |
| QSPI Flash | 64 MB |
| eMMC Flash | 32 GB |
| Module connectors | 4 × Panasonic board-to-board connectors |
| FMC interface | 1 × FMC HPC |
| FMC I/O resources | 59 LVDS I/O pairs and 8 GTH transceiver pairs |
| PCIe interface | 1 × PCIe Gen3 ×8 |
| M.2 interface | 1 × PS-connected M.2 card slot |
| Display interface | 1 × PS-connected DisplayPort |
| Ethernet | 2 × Gigabit Ethernet; 1 × PS and 1 × PL |
| UART | 2 × USB-to-UART; 1 × PS and 1 × PL |
| Expansion interface | 1 × 40-pin connector with 34 I/O signals and 2.54 mm spacing |
| Status indicators | 1 × power LED, 1 × done LED, 1 × PL LED |
| User controls | 1 × reset key, 1 × PS key, 1 × PL key |
| Power input | 12 V DC, single supply |
| Board dimensions | 222 × 106.7 mm |
3) Tech Support/Documents
Web available technical information usually covers the Z11-P system-on-module and base-board architecture, MPSoC processing resources, DDR4 memory, QSPI and eMMC storage, FMC HPC expansion, PCIe, M.2, DisplayPort, Ethernet, UART, 40-pin expansion, power requirements, and mechanical dimensions. There are the following technical resources and support areas available for development:
- Board specifications
- Product information
- Product selection data
- User manual
- Complete development documentation
- Demonstration designs
- Tutorials
- FPGA and embedded-software development support
- Project-specific technical assistance
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The following related products are identified on the product page:
- ACU11EG SoM with AMD Zynq™ UltraScale+™ MPSoC XCZU11EG
- ACU7EVC SoM with AMD Zynq™ UltraScale+™ MPSoC XCZU7EV
- Z7-P Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC XCZU7EV
- Z19-P Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC XCZU19EG
- Z19 Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC XCZU19EG
- AXU5EVB-P Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU5EV
- AXU4EVB-P Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU4EV
- AXU15EGB Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU15EG
- AXU9EGB Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU9EG
- AXU5EVB-E Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU5EV
- AXU4EVB-E Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU4EV
- AXU3EGB Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU3EG
- AX7Z100B Dev Board & Kit with AMD Zynq™ 7000 SoC XC7Z100
- FH9000 16-bit/14-bit RF-ADC AD9009 FMC HPC Card
- FH7000 16-bit/14-bit ADC AD9371 Communication RF FMC HPC Card
- FH7621 8K HDMI 2.1 Video Input/Output Interface HPC FMC Card
- FH9712 16-channel GMSL Autopilot Camera Acquisition HPC FMC Card
- FL9781 14-bit 500 MSPS AD9781 Output Module LPC FMC Card
5) Downloads/Links
6) What is in the package
The package contains.
- 1 × system-on-module
- 1 × base board
- 1 × preinstalled heatsink kit
- 1 × USB downloader cable/set
- 1 × 12 V power adapter
- 1 × PCIe fence
- 1 × Mini USB cable
- 1 × card reader
- 1 × TF card
