Description and Technical Data:
1) Overview/Key Features

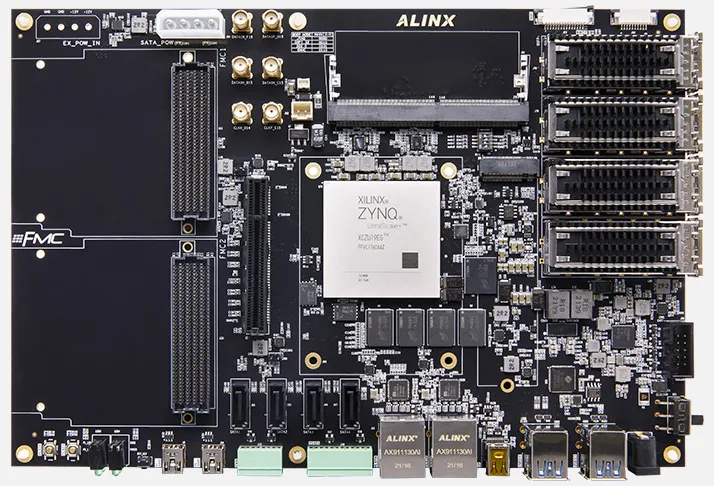

The Z19 development board and kit is designed around the AMD Zynq™ UltraScale+™ MPSoC XCZU19EG-2FFVC1760I. It combines a quad-core ARM Cortex-A53 application processor, dual-core ARM Cortex-R5F real-time processor, Mali-400 MP2 GPU, and programmable FPGA fabric in a single platform for advanced embedded-processing and high-performance FPGA development.
The board is suitable for artificial intelligence, deep learning, digital signal processing, 5G wireless and wired communications, data centers, cloud computing security, automotive systems, industrial Internet of Things applications, machine vision, medical equipment, video and image processing, broadcasting, and motion control.
- 8 GB DDR4 SDRAM connected to the processing system
- 1 x DDR4 SODIMM slot connected to the programmable logic
- 2 x 64 MB QSPI Flash and 32 GB eMMC Flash
- 2 x FMC HPC expansion connectors
- 4 x QSFP28+ interfaces supporting up to 100 Gbps per line
- PCIe Gen 3 x8 interface
- M.2 interface and DisplayPort interface
- 2 x Gigabit Ethernet interfaces
- 2 x CAN interfaces and 2 x RS485 interfaces
- 2 x USB 3.0 and 2 x USB 2.0 interfaces
- 2-lane MIPI interface and 4 x SATA interfaces
- MicroSD interface, UART interfaces, JTAG, RTC, temperature sensor, SMA connectors, LEDs, and user keys
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| MPSoC | AMD Zynq™ UltraScale+™ MPSoC XCZU19EG-2FFVC1760I |
| Application processor | Quad-core ARM Cortex-A53, up to 1.3 GHz |
| Real-time processor | Dual-core ARM Cortex-R5F, up to 533 MHz |
| GPU | Mali-400 MP2 |
| FPGA fabric | 16 nm FinFET+ programmable logic |
| PS DDR4 SDRAM | 8 GB, 64-bit |
| PL DDR4 SDRAM | 1 x DDR4 SODIMM card slot |
| QSPI Flash | 2 x 64 MB |
| eMMC Flash | 32 GB |
| M.2 interface | 1 x M.2 interface on the processing system |
| DisplayPort | 1 x DisplayPort interface on the processing system |
| QSFP28+ | 4 x interfaces, up to 100 Gbps per line |
| Gigabit Ethernet | 2 x interfaces; 1 x processing-system interface and 1 x programmable-logic interface |
| FMC expansion | 2 x FMC HPC connectors; FMC1 provides 36 LVDS pairs and 8 GTH pairs; FMC2 provides 60 LVDS pairs and 8 GTH pairs |
| MIPI | 1 x 2-lane MIPI interface on the programmable logic |
| PCI Express | 1 x PCIe Gen 3 x8 slot |
| CAN | 2 x CAN interfaces on the processing system |
| RS485 | 2 x RS485 interfaces on the programmable logic |
| USB | 2 x USB 3.0 and 2 x USB 2.0 interfaces on the processing system |
| UART | 3 x UART interfaces, including 2 x USB-to-UART and 1 x FPC UART |
| Storage interfaces | 1 x MicroSD interface and 4 x SATA interfaces |
| Debug interface | 1 x JTAG interface |
| EEPROM | 1 x 4-Kbit I2C serial EEPROM |
| Temperature monitoring | 1 x LM75 temperature sensor |
| Clock and connectors | 1 x RTC and 4 x SMA connectors |
| Indicators and keys | 4 x LEDs and 3 x keys |
| Power supply | 12 V single supply |
| Board dimensions | 250 x 170 mm |
3) Tech Support/Documents
Web available technical information usually covers the board architecture, MPSoC features, memory configuration, high-speed interfaces, expansion connectors, storage interfaces, power requirements, and supported application areas. There are the following technical resources:
- Z19 user manual
- Board hardware documentation
- Product selection information
- Development-board demonstrations and tutorials
- FMC expansion and interface information
- Application guidance for AI, automotive, industrial, video, communication, and machine-vision projects
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- ACU19EG SoM with AMD Zynq™ UltraScale+™ MPSoC XCZU19EG
- Z19-P Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC XCZU19EG
- AXU15EGB Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU15EG
- AXU9EGB Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU9EG
- Z7-P Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC XCZU7EV
- AXU5EVB-P Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU5EV
- AXU4EVB-P Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU4EV
- AXU3EGB Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU3EG
- FH9000 16-bit/14-bit RF-ADC AD9009 FMC HPC Card
- FH7000 16-bit/14-bit ADC AD9371 Communication RF FMC HPC Card
- FH7621 8K HDMI 2.1 Video Input/Output Interface HPC FMC Card
- FH9712 16-channel GMSL Autopilot Camera Acquisition HPC FMC Card
- FL9781 14-bit 500 MSPS AD9781 Output Module LPC FMC Card
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x development board
- 1 x preinstalled heatsink kit
- 1 x mini USB cable
- 1 x USB downloader cable/set
- 1 x 12 V power adapter
- 1 x acrylic plate
- 1 x TF card
- 1 x card reader
