Description and Technical Data:
1) Overview/Key Features

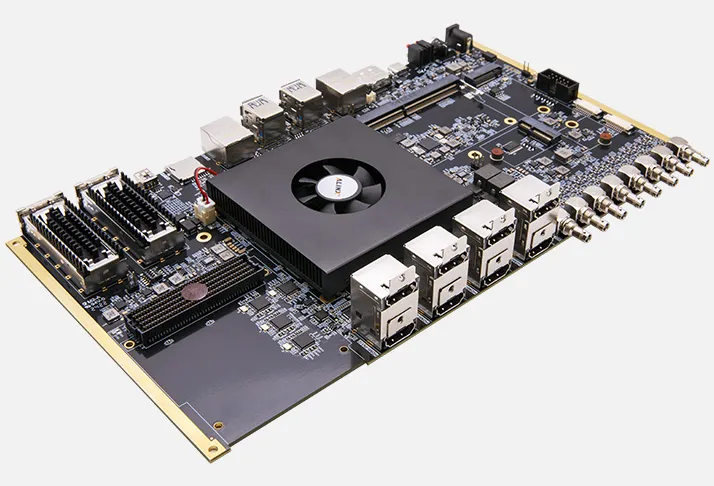

The Z19-M is a high-performance FPGA and GPU heterogeneous-computing development platform based on the AMD/Xilinx Zynq UltraScale+ MPSoC XCZU19EG and an optional NVIDIA Jetson Orin NX module. It is designed for AI edge computing, professional video acquisition and processing, high-speed communications, and industrial applications.
- AMD/Xilinx Zynq UltraScale+ MPSoC XCZU19EG with quad-core ARM Cortex-A53 processors up to 1.3 GHz
- Dual-core ARM Cortex-R5F processors up to 533 MHz
- Mali-400 MP2 GPU and 16 nm FinFET+ FPGA fabric
- 8 GB 64-bit DDR4 SDRAM for the processing system
- 16 GB 64-bit DDR4 SDRAM for the programmable logic
- 2 x 64 MB QSPI Flash and 32 GB eMMC Flash
- Support for an NVIDIA Jetson Orin NX module for FPGA and GPU heterogeneous processing
- 4 x HDMI 2.1 inputs and 4 x HDMI 2.1 outputs supporting up to 8K/60 Hz video
- 8 x 12G-SDI interfaces supporting 4K/60 Hz video input or output
- 2 x 100 Gbps QSFP28 optical-fiber interfaces
- 1 x FMC HPC expansion connector with 36 LVDS pairs and 8 GTH pairs
- M.2 interfaces for SSD and Wi-Fi/Bluetooth expansion
- 4 x USB 3.0 Type-A ports and 1 x USB 3.0 Type-C port
- 12 V single-supply operation
- Board dimensions: 280 x 163 mm
Typical applications include industrial manufacturing, semiconductor optical testing, surgical robotics, medical endoscopy, collaborative robotics, intelligent transportation, and power-related systems.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| MPSoC | AMD/Xilinx Zynq UltraScale+ MPSoC XCZU19EG-2FFVC1760I |
| ARM processing system | Quad-core ARM Cortex-A53 up to 1.3 GHz |
| Real-time processing system | Dual-core ARM Cortex-R5F up to 533 MHz |
| GPU | Mali-400 MP2 |
| FPGA process technology | 16 nm FinFET+ |
| PS DDR4 SDRAM | 8 GB, 64-bit |
| PL DDR4 SDRAM | 16 GB, 64-bit |
| QSPI Flash | 2 x 64 MB |
| eMMC Flash | 32 GB |
| Jetson module interface | 1 x NVIDIA Jetson Orin NX module interface |
| Jetson Orin NX options | 8 GB version up to 70 TOPS or 16 GB version up to 100 TOPS; module purchased separately |
| HDMI video | 4 x HDMI 2.1 inputs and 4 x HDMI 2.1 outputs; up to 8K/60 Hz |
| 12G-SDI video | 8 interfaces supporting 4K/60 Hz video input or output |
| DisplayPort | 1 x DisplayPort interface |
| High-speed networking | 2 x QSFP28 interfaces, up to 100 Gbps each |
| Ethernet | 1 x Gigabit Ethernet interface connected to the processing system |
| FMC expansion | 1 x FMC HPC connector with 36 LVDS I/O pairs and 8 GTH pairs |
| Storage expansion | 1 x M.2 SSD interface |
| Wireless expansion | 1 x M.2 Wi-Fi/Bluetooth interface |
| USB | 4 x USB 3.0 Type-A and 1 x USB 3.0 Type-C |
| Debug and control | 1 x UART, 1 x JTAG, 1 x MicroSD interface, 4 x LEDs, and 1 x power switch |
| Monitoring | 1 x EEPROM, 1 x LM75 temperature sensor, and 1 x real-time clock |
| Power input | 12 V DC single supply |
| Dimensions | 280 x 163 mm |
3) Tech Support/Dokuments
Web available technical information usually covers the Z19-M board architecture, MPSoC resources, memory configuration, video interfaces, high-speed networking, FMC expansion, storage interfaces, power requirements, and supported accessories.
There are the following technical resources available:
- Z19-M V1.0 User Manual
- Z19-M V1.1 User Manual
- Product information and hardware specifications
- Product selection matrix
- Application information for AI edge computing and professional video processing
- Information regarding compatible FMC expansion cards and optional Jetson Orin NX modules
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The following manufacturer-listed products may be suitable for related FPGA, SoC, video, RF, and heterogeneous-computing applications:
- ACU19EG SoM with AMD Zynq UltraScale+ MPSoC XCZU19EG
- Z19 Dev Board & Kit with AMD Zynq UltraScale+ MPSoC XCZU19EG
- AXVU13F FPGA Dev Board & Kit with AMD Virtex UltraScale+ XCVU13P
- HEA13 FPGA Dev Board & Kit with AMD Virtex UltraScale+ XCVU13P
- AXVU9F FPGA Dev Board & Kit with AMD Virtex UltraScale+ XCVU9P
- FH9000 16-bit/14-bit RF-ADC AD9009 FMC HPC Card
- FH7000 16-bit/14-bit ADC AD9371 Communication RF FMC HPC Card
- FH7621 8K HDMI 2.1 Video Input/Output FMC HPC Card
- FH9712 16-channel GMSL Autopilot Camera Acquisition FMC HPC Card
- FL9781 14-bit 500 MSPS AD9781 Output FMC LPC Card
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x Development Board
- 1 x Preinstalled Heatsink Kit
- 1 x Mini USB Cable
- 1 x USB Downloader Cable/Set
- 1 x 12 V Power Adapter
- 1 x Acrylic Plate
- 1 x TF Card
- 1 x Card Reader
