Description and Technical Data:
1) Overview/Key Features

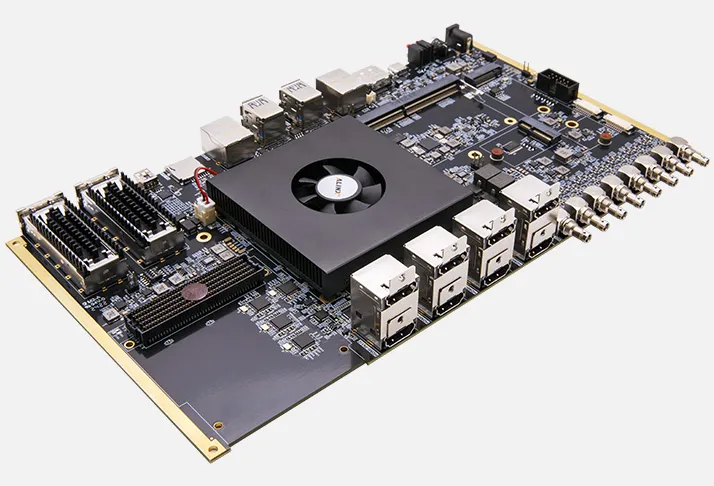

The Z19-M is a heterogeneous computing development platform combining an AMD/Xilinx Zynq UltraScale+ MPSoC XCZU19EG with an optional NVIDIA Jetson Orin NX module. It is designed for FPGA and GPU collaborative processing, AI edge computing, professional 8K video acquisition and processing, industrial control, medical imaging, robotics, intelligent transportation, and high-speed data processing applications.
- Zynq UltraScale+ MPSoC XCZU19EG
- Quad-core ARM Cortex-A53 processor up to 1.3 GHz
- Dual-core ARM Cortex-R5F processor up to 533 MHz
- Mali-400 MP2 GPU
- 16 nm FinFET FPGA fabric
- 8 x HDMI 2.1 interfaces: 4 x input and 4 x output
- Supports HDMI video up to 8K at 60 Hz
- 8 x 12G-SDI interfaces supporting 4K at 60 Hz input or output
- 2 x 100G QSFP28 optical-fiber interfaces
- 1 x FMC HPC connector
- Optional NVIDIA Jetson Orin NX module interface
- High-speed M.2 storage and M.2 Wi-Fi/Bluetooth interfaces
- 1 x Gigabit Ethernet interface on the processing-system side
- 4 x USB 3.0 Type-A and 1 x USB 3.0 Type-C interfaces
- DisplayPort and Micro SD interfaces
- 12 V single-supply input
- 280 x 163 mm board dimensions
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| MPSoC device | XCZU19EG-2FFVC1760I |
| MPSoC family | Zynq UltraScale+ MPSoC |
| Application processor | Quad-core ARM Cortex-A53, up to 1.3 GHz |
| Real-time processor | Dual-core ARM Cortex-R5F, up to 533 MHz |
| Graphics processor | Mali-400 MP2 |
| FPGA fabric | 16 nm FinFET technology |
| DDR4 SDRAM on PS | 8 GB, 64-bit |
| DDR4 SDRAM on PL | 16 GB, 64-bit |
| QSPI Flash | 2 x 64 MB |
| eMMC Flash | 32 GB |
| Jetson module interface | 1 x NVIDIA Jetson Orin NX module interface |
| HDMI 2.1 | 4 x input and 4 x output; supports up to 8K at 60 Hz |
| 12G-SDI | 8 interfaces; supports 4K at 60 Hz input or output |
| QSFP28 | 2 x 100 Gbps optical-fiber interfaces |
| FMC HPC | 1 connector with 36 LVDS I/O pairs and 8 GTH transceiver pairs |
| Gigabit Ethernet | 1 x interface on the processing-system side |
| DisplayPort | 1 x interface |
| Storage | 1 x M.2 SSD interface |
| Wireless interface | 1 x M.2 Wi-Fi/Bluetooth interface |
| USB | 4 x USB 3.0 Type-A and 1 x USB 3.0 Type-C |
| Micro SD | 1 x interface |
| UART | 1 x interface |
| JTAG | 1 x interface |
| EEPROM | 1 x 24AA04 I/SN, 4 Kbit |
| Temperature sensor | 1 x LM75 |
| Real-time clock | 1 x RTC |
| User indicators | 4 x LEDs |
| User control | 1 x power-switch button |
| Power input | 12 V single supply |
| Board dimensions | 280 x 163 mm |
3) Tech Support/Documents
Web available technical information usually covers the Zynq UltraScale+ MPSoC architecture, FPGA and processor resources, DDR4 and Flash memory, 8K HDMI video, 12G-SDI, 100G optical networking, FMC expansion, Jetson integration, storage, wireless connectivity, and supported AI, video, industrial, medical, and robotics applications. There are the following technical resources:
- Z19-M V1.0 user manual
- Z19-M V1.1 user manual
- Board feature and interface descriptions
- Product specifications and product selection information
- Development demonstrations and tutorials
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- NVIDIA Jetson Orin NX 16 GB module
- NVIDIA Jetson Orin NX 8 GB module
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x development board
- 1 x preinstalled heatsink kit
- 1 x Mini USB cable
- 1 x USB downloader cable/set
- 1 x 12 V power adapter
- 1 x acrylic plate
- 1 x TF card
- 1 x card reader
