Description and Technical Data:
1) Overview/Key Features

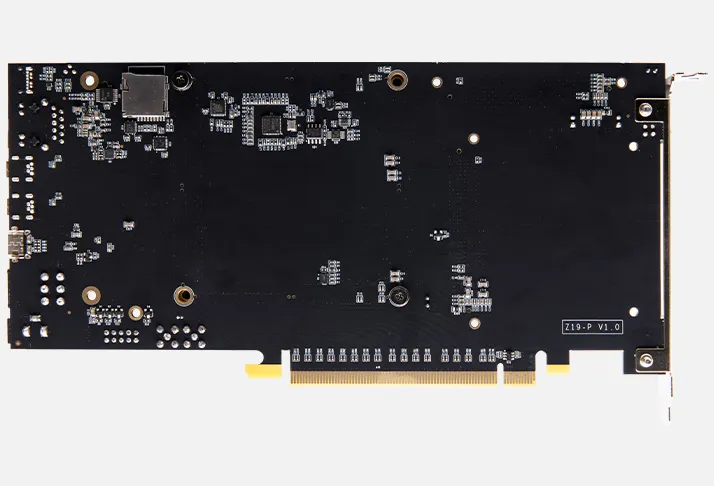

The Z19-P V2.0 development board kit is built around the AMD Zynq™ UltraScale+™ MPSoC XCZU19EG-2FFVC1760I, combining a quad-core ARM Cortex-A53 processing system, dual-core ARM Cortex-R5F real-time processing system, Mali-400 MP2 GPU, and programmable FPGA fabric. It is suited to demanding applications including artificial intelligence, deep learning, digital signal processing, machine vision, video and image processing, industrial control, automotive systems, data-center acceleration, and high-speed communications.
- 8 GB DDR4 SDRAM connected to the processing system
- 4 GB DDR4 SDRAM connected to the programmable logic
- 2 x 64 MB QSPI Flash and 32 GB eMMC Flash
- 2 x FMC HPC expansion connectors
- 4 x QSFP28 interfaces supporting up to 100 Gbps per line
- PCIe Gen 3 x8 interface
- M.2 interface connected to the processing system
- 2 x Gigabit Ethernet interfaces
- 2 x CAN interfaces and 2 x RS485 interfaces
- 2 x USB 3.0 and 2 x USB 2.0 interfaces
- MicroSD card interface, SATA interfaces, MIPI interface, DisplayPort, UART, JTAG, RTC, temperature sensor, and user-control LEDs
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| MPSoC | AMD Zynq™ UltraScale+™ MPSoC XCZU19EG-2FFVC1760I |
| Application processors | Quad-core ARM Cortex-A53, up to 1.3 GHz |
| Real-time processors | Dual-core ARM Cortex-R5F, up to 533 MHz |
| GPU | Mali-400 MP2 |
| FPGA fabric | 16 nm FinFET+ programmable logic |
| PS DDR4 SDRAM | 8 GB, 64-bit |
| PL DDR4 SDRAM | 4 GB |
| QSPI Flash | 2 x 64 MB |
| eMMC Flash | 32 GB |
| FMC expansion | 2 x FMC HPC connectors; FMC1 provides 36 LVDS pairs and 8 GTH pairs; FMC2 provides 60 LVDS pairs and 8 GTH pairs |
| High-speed networking | 4 x QSFP28, up to 100 Gbps per line |
| PCI Express | 1 x PCIe Gen 3 x8 slot |
| Ethernet | 2 x Gigabit Ethernet, including 1 PS interface and 1 PL interface |
| M.2 | 1 x M.2 interface on the PS |
| USB | 2 x USB 3.0 and 2 x USB 2.0 on the PS |
| CAN | 2 x CAN interfaces on the PS |
| RS485 | 2 x RS485 interfaces on the PL |
| Display output | 1 x DisplayPort interface on the PS |
| MIPI | 1 x 2-lane MIPI interface on the PL |
| Storage interface | 1 x MicroSD interface and 4 x SATA interfaces |
| Serial interfaces | 3 x UART, including 2 x USB-to-UART and 1 x FPC UART |
| Debug interface | 1 x JTAG |
| Monitoring | 4-Kbit I2C serial EEPROM and 1 x LM75 temperature sensor |
| Clock and indicators | 1 x RTC, 4 x SMA, 4 x LEDs, and 3 x keys |
| Power supply | 12 V single supply |
| Board dimensions | 250 x 170 mm |
3) Tech Support/Documents
Web available technical information usually covers the board architecture, interface configuration, hardware features, development-board operation, and factory demonstration projects. There are the following development resources:
- Hardware design files and board-support resources
- Vivado factory demonstration project
- Vivado project-generation scripts
- Linux-related development resources
- Board user documentation
- Example guidance for creating a Vivado project using Tcl or Windows batch scripts
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- ACU19EG SoM with AMD Zynq™ UltraScale+™ MPSoC XCZU19EG
- AXU15EGB Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU15EG
- AXU9EGB Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU9EG
- FH9000 16-bit/14-bit RF-ADC AD9009 FMC HPC Card
- FH7000 16-bit/14-bit ADC AD9371 Communication RF FMC HPC Card
- FH7621 8K HDMI 2.1 Video Input/Output Interface HPC FMC Card
- FH9712 16-channel GMSL Autopilot Camera Acquisition HPC FMC Card
- FL9781 14-bit 500 MSPS AD9781 Output Module LPC FMC Card
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x development board
- 1 x heatsink kit, preinstalled
- 1 x mini USB cable
- 1 x USB downloader cable/set
- 1 x 12 V power adapter
- 1 x acrylic plate
- 1 x TF card
- 1 x card reader
