Description and Technical Data:
1) Overview/Key Features

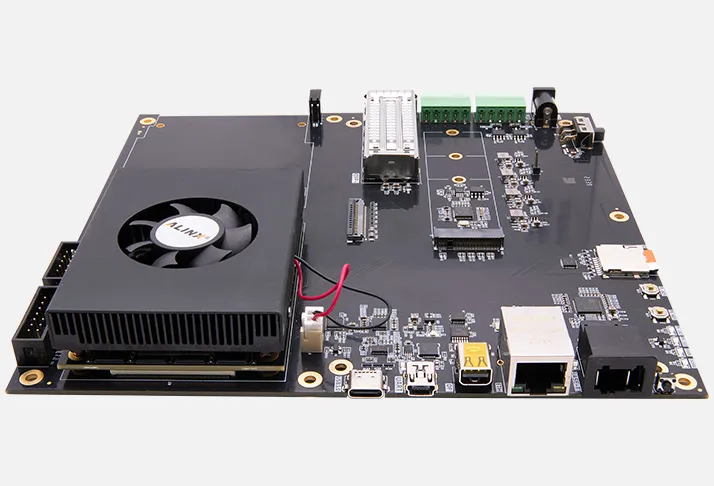

The Z7-A V2.0 autonomous-driving development board and kit combines an AMD Zynq™ UltraScale+™ MPSoC XCZU7EV system-on-module with a dedicated automotive-oriented base board. It is designed for evaluating electronic rearview mirror systems, multi-channel video capture, video injection, video streaming, bypass output, and synchronized vehicle-data processing.
The platform supports 4-channel GMSL video input/output, a 1000BASE-T1 automotive Ethernet interface, 2 CAN-FD interfaces, and gPTP timestamp synchronization for coordinated multi-channel data acquisition. The pluggable system-on-module architecture also supports separate use of the ACU7EV module in compatible designs.
- Quad-core ARM Cortex-A53 application processor up to 1.3 GHz
- Dual-core ARM Cortex-R5F real-time processor up to 533 MHz
- Mali-400 MP2 GPU and H.264/H.265 video codec
- 16 nm FinFET+ programmable-logic fabric
- 4 GB DDR4 SDRAM on the processing system
- 4 GB DDR4 SDRAM on the programmable logic
- 4-channel GMSL video input/output capability
- 1000BASE-T1 automotive Ethernet interface
- 2 x CAN-FD interfaces with gPTP timestamp synchronization support
- QSFP+ optical-fiber interface, FMC HPC expansion, M.2, DisplayPort, USB 3.0, and Gigabit Ethernet
- Dedicated automotive camera, display, cabling, and video-processing accessories included in the kit
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| MPSoC | AMD Zynq™ UltraScale+™ MPSoC XCZU7EV-2FFVC1156I |
| Application processor | Quad-core ARM Cortex-A53, up to 1.3 GHz |
| Real-time processor | Dual-core ARM Cortex-R5F, up to 533 MHz |
| GPU | Mali-400 MP2 |
| Video codec | H.264/H.265 video codec |
| Programmable logic | 16 nm FinFET+ FPGA fabric |
| System-on-module memory | 4 GB DDR4 SDRAM, 64-bit, connected to the processing system |
| Programmable-logic memory | 4 GB DDR4 SDRAM, 64-bit |
| QSPI Flash | 64 MB |
| eMMC Flash | 32 GB |
| Module connection | 4 x Panasonic board-to-board connectors |
| FMC expansion | 1 x FMC HPC connector with 55 LVDS pairs and 8 GTH pairs |
| M.2 | 1 x M.2 interface, PCIe Gen 2 x4 |
| DisplayPort | 1 x DisplayPort interface on the processing system |
| USB | 1 x USB 3.0 interface on the processing system |
| Automotive Ethernet | 1 x 1000BASE-T1 interface |
| Gigabit Ethernet | 1 x Gigabit Ethernet interface on the processing system |
| CAN | 2 x CAN-FD interfaces |
| GMSL video | 4-channel GMSL video input/output |
| Optical interface | 1 x QSFP+ fiber-optic interface |
| UART | 1 x USB-to-UART interface on the processing system |
| Expansion port | 1 x 14-pin, 2.54 mm-pitch expansion port |
| Display expansion | 1 x 40-pin FPC interface for a compatible 7-inch display module |
| Storage | 1 x MicroSD interface |
| Debug interface | 1 x JTAG interface |
| Monitoring | 4-Kbit I2C serial EEPROM and 1 x LM75 temperature sensor |
| LED indicators | 8 x LEDs: 1 x power, 1 x done, 1 x PS, 1 x PL, and 4 x user indicators |
| Push buttons | 1 x reset button and 2 x user buttons |
| Power supply | 12 V single supply |
| Board dimensions | 183.41 x 171.18 mm |
3) Tech Support/Documents
Web available technical information usually covers the Z7-A system-on-module, automotive base-board architecture, MPSoC processing resources, memory, high-speed interfaces, GMSL video connectivity, CAN-FD, automotive Ethernet, display connectivity, and expansion options. There are the following technical resources:
- Z7-A user manual
- Product specifications and selection information
- Autonomous-driving application information
- Video capture, video injection, and bypass-output guidance
- Electronic rearview mirror CMS application information
- Multi-channel video-streaming and synchronization information
- Development demonstrations and tutorials
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- ACU7EVC SoM with AMD Zynq™ UltraScale+™ MPSoC XCZU7EV
- FL9295 4-channel Vehicle Video Acquisition Injection GMSL LPC FMC Card
- C2211 2M in-car GMSL camera module with OX03C10
- C2212 2M in-car GMSL camera module with OX03C10
- AN7000 7-inch screen module, RGB 24-bit color, 1280 × 720
- AL321 FPGA USB downloader cable with JTAG debug support
- FAN8060 heatsink kit
- Panasonic AXK6A2337YG 120-pin board-to-board connectors
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x Z7-A system-on-module
- 1 x Z7-A base board
- 1 x 7-inch car-size LCD screen AN7000
- 1 x car-mounted camera C2211
- 1 x 40-pin FPC ribbon cable
- 1 x serial decoupling FMC card FL9295
- 1 x 12 V power supply
- 1 x AL321 downloader
- 1 x 4-in-1 Amphenol Z-code Fakra connector coaxial RF cable
- 1 x SD card
- 1 x 4-in-1 Fakra SMB automotive ECU injection/reinjection connection line
- 2 x USB cables
